MINI-MAX/51-F

MINI-MAX/51-F is a general purpose, low-cost, highly-reliable and highly-expandable micro-controller system that is based on Texas Instruments MSC1211Y5 micro-controller.
Ideal for Internet of Things (IoT) applications.

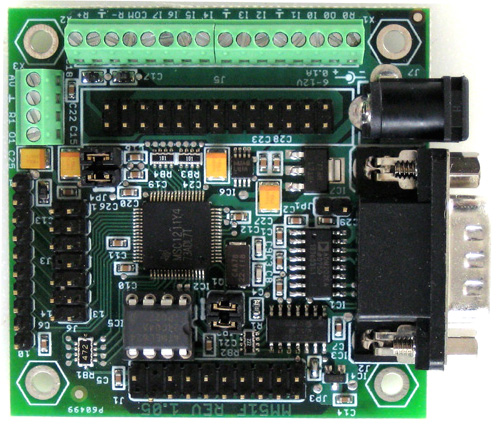

 MINI-MAX/51-F - MSC1211Y5 microcontroller board with 8-ch, 24-bit ADC and 4-ch, 16-bit DAC
Part No. Description Price Stock
MINI-MAX/51-F MSC1211Y5 microcontroller board with 8-ch, 24-bit ADC and 4-ch, 16-bit DAC $149 ∗
MINI-MAX/51-F(No Adapter) MSC1211Y5 microcontroller board with 8-ch, 24-bit ADC and 4-ch, 16-bit DAC $143 ∗
PWR-6VDC-1A-P 6VDC Adapter, 1A $12 ∗
∗ Standard lead time is 1 week

Features

  • 8051 compatible core with 4 clocks per instruction cycle
  • 32K bytes of FLASH program / data memory, (endurance 1 million cycles)
  • 1280 bytes of static data RAM
  • Precision 8 differential or single-ended channels with 24-bit Analog-Digital-Converter (ADC)
  • Quad 16-bit monotonic Digital-Analog-Converter (DAC)
  • One PGA (Programmable Gain Amplifier), gain from 1 to 128
  • Additional 32-bit accumulator
  • Master / slave SPI with DMA
  • Multi-master I2C
  • 16-bit PWM
  • 21 Interrupt sources
  • 512-byte EEPROM (optional up to 128-Kilobyte EEPROM)
  • RS232 Serial Port
  • In-circuit Programming of the micro-controller through the serial port
  • Keypad connector
  • LCD connector (programmable contrast adjustment for the LCD)
  • Analog connector and screw terminal block for analog circuits
  • Expansion bus interface to low-cost peripheral boards
  • Warranty Period: 3 years
