DINM DIN Rail Mounting Clip DocumentsPhotos

Part No.	Description	Price	Stock
DINM12-RC	DIN Rail Mounting Clip, Black, 20mm width	$2	146
DINM13-RC	DIN Rail Mounting Clip, Black, 35mm width	$2	33
DINM15-RC	DIN Rail Mounting Clip, Black	$2	37
DINM15V2-RC	DIN Rail Mounting Clip, Black, 48mm width	$2	40

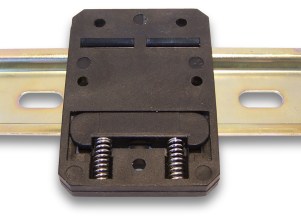

These sturdy DIN rail mounting brackets come in handy for a wide variety of projects where standard DIN rail is used for mounting devices. The flat mounting surface and a total of five mounting holes make this clip versatile for mounting devices that do not have their own DIN rail mounting clip. These clips are for standard 35mm DIN rail, and work with rail depths of 7.5mm or greater. These clips are sometimes known as DIN rail mounting plates.

The screw holes in this clip are non-threaded and they are not intended to be threaded into. Intended usage is for the screw to pass through the clip and thread into the device being mounted. The holes accommodate up to #6 size screws. Note that the surface of the device being mounted to the DIN clip should be flat and cover the DIN clip in order to keep the springs and latch portion of the clip securely in place.

These clips are very easily attached and detached from the DIN rail. When on the rail, the clip "grips" the rail on both the top and bottom lips of the rail. The "fixed" (not spring-loaded) tab of the clip should go on the top so that it bears the load. The spring-loaded tab should go on the bottom. To remove the DIN clip from the rail, simply push upwards on the DIN clip (thereby compressing the springs in the bottom), pivot the top of the clip off of the rail, and then move the whole clip down to also release the bottom of the clip. No screwdrivers or special tools are required.

Note: DINM15V2-RC supersedes the part number DINM15-RC.

Rail not included
