Pinout for the serial port?
«
on:
November 21, 2009, 12:05:25 pm »
I have two questions.
1. where can I find the pinout for the serial port on the GadgetPC?
and
2. Is it 3.3v or 5v levels?
Logged
franklin97355
Guest
Re: Pinout for the serial port?
«
Reply #1 on:
November 27, 2009, 11:09:43 am »
Vitaliy responded with this:
3.3v (out)
GND
RXD(3.3v in)
TXD(3.3v out)
GND
Not Connected
GND
GND
This is with the four USB ports facing to the right.
Thanks Vitaliy
Logged
vitaliy
Full Member
Posts: 30
Re: Pinout for the serial port?
«
Reply #2 on:
December 11, 2009, 10:40:52 am »

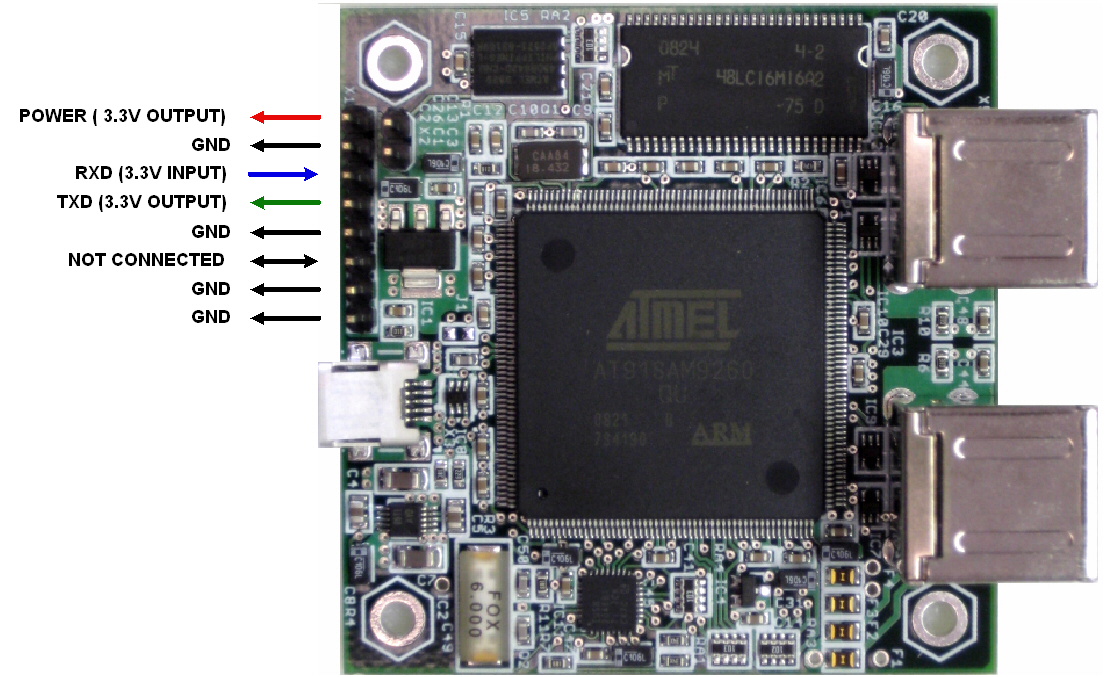

http://www.bipom.com/support/gadgetpc/uart.jpg
Logged
vitaliy
Full Member
Posts: 30
Re: Pinout for the serial port?
«
Reply #3 on:
December 24, 2009, 03:16:35 am »

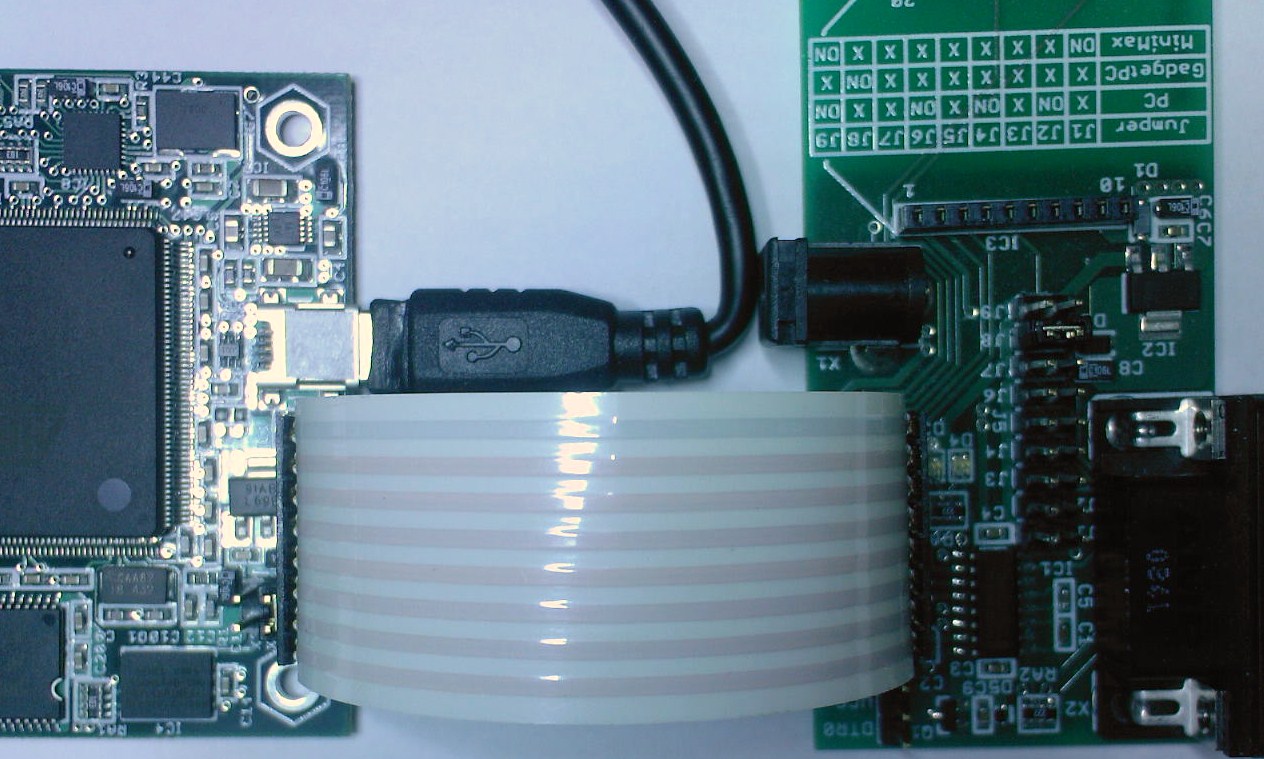

The simplest way to get access to a serial console is to use a BRD-RS232-TTL-1 peripheral board .
http://www.bipom.com/products/us/851715.html
The board will be powered from the GadgetPC if the J8 jumper is closed.
Logged
meetseo
Guest
Re: Pinout for the serial port?
«
Reply #4 on:
December 05, 2011, 09:39:09 am »
Hi,
This is really a very nice info. Thanks & keep us updated.
Regards
Logged
Ashley
Guest
Re: Pinout for the serial port?
«
Reply #5 on:
December 08, 2011, 07:16:06 am »
I want to know which any USB Flash Drive i can connect with GadgetPC ?
Logged
vitaliy
Full Member
Posts: 30
Re: Pinout for the serial port?
«
Reply #6 on:
December 08, 2011, 10:16:27 am »
http://www.bipom.com/documents/boards/gadgetpc/GadgetPC%20Supported%20Hardware.pdf
