LK162-12

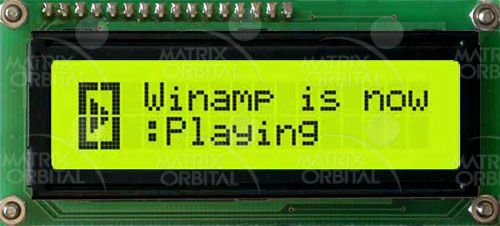

This unit is used in a variety of industrial applications such as computer server systems and web application control systems. Our 16 characters by 2 lines displays are available with many options to give your project a quick launch to market. The unit is displaying Winamp information.
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide
Features:
| Keypad | 12 |
| One Wire | N/A |
| GPO | 7 |
| Advanced GPO | N/A |
Appearance:
| Module Size | 80.00 mm(L)×36.00 mm(W)×27.50mm(T) |
| Character Size | 5.55 mm(L)×2.95 mm(W) |
| Active Area | 56.20 mm(L)×11.50 mm(W) |
| Background Color | Yellow/Green |
| Text Color | Black |
| Format | 16 x 2 |
Interface:
| RS232 | 1200 to |
| RS232 TTL | 1200 to |
| Buffer | 80 Bytes |
| Other | I2C |
Electrical:
| Standard Temperature | 0°C to 50°C |
| Extended Temp.(-E) | -20°C to 70°C |
| Max Humidity | 90% |
| Supply Current | 37 mA |
| Backlight Current | 92 mA |
| Inrush Current | N/A |
| Part No. | Description | Price | |
|---|---|---|---|
| LK162-12 | Base Product | $50 | |
| LK162-12-E | Extended Temperature option. | $60 | |
| LK162-12-V | Wide Voltage power, +9 to +15Vdc. | $53 | |
| LK162-12-V-E | Wide Voltage power +9 to +15Vdc. Extended Temperature -20 to +70 C. | $63 |
