Micro-IDE


Micro-IDE Setup Free Download

The ultimate micro-controller development environment with built-in support for a wide variety of popular Compilers,  Assemblers, Debuggers, Tools, Simulators, Emulators, Training Kits and Microcontroller Boards

8051 Boards ARM Boards AVR Boards PIC® Boards 68HCXX Boards MSP430 Boards MINI-MAX/STM32F1-C NanoWiPOM MINI-MAX/AVR-AU MINI-MAX/AVR-BU MicroTRAK/ARM-C & E Starter/Complete MicroTRAK/51-C2, E & F Starter/Complete MicroTRAK/AVR-C Starter/Complete MicroTRAK/908-C Starter/Complete MicroTRAK/P18 Starter/Complete MicroTRAK/MSP430-C Starter/Complete MicroTRAK/STM32F1-C Starter/Complete EconoROM Series Low-Cost EPROM Emulators FlexROM Series EPROM Emulators ARM Development System Micro C 8051 Development System Micro C 68HC08 Development System Micro C 6809 Development System Micro C 68HC11 Development System Micro C 68HC12 Development System Micro C 68HC16 Development System Micro C 8086 Development System Micro C 8096 Development System Microchip Development System (Support for MPASM®,CCS and C18) SDCC Small Device C Compiler for 8051 BASCOM-51 BASCOM-AVR MSP Development System STM Development System AVR Development System 68HC08 Simulator 68HC08 Debugger 68HC11 Simulator 68HC12 Simulator 8051 Simulator 8051 Debugger ARM Simulator Micro C BASCOM-AVR GNUARM SDCC YAGARTO Sourcery WiNAVR C Arduino MINI-MAX/51 MINI-MAX/ARM MINI-MAX/908 MINI-MAX/MSP430 M68HC11 MINI-MAX/STM MINI-MAX/AVR

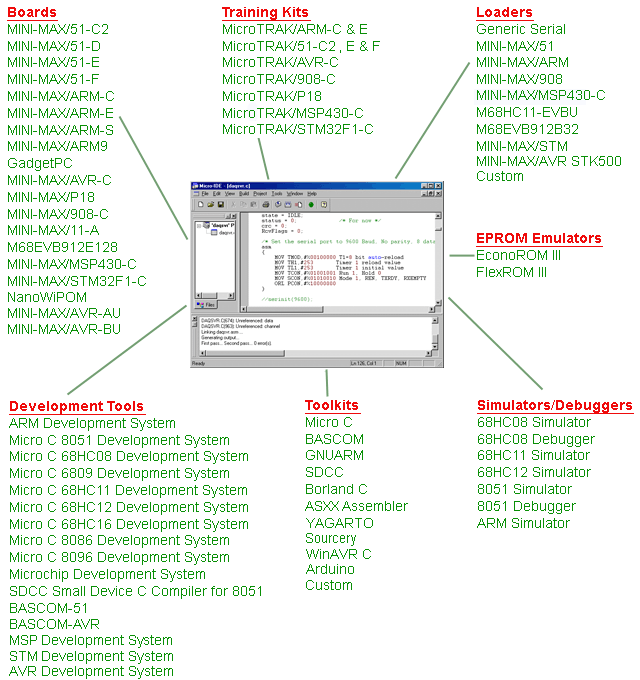

Micro-IDE is a Windows based Integrated Development Environment (IDE) for micro-controllers. Originally designed for use with Micro-C, Micro-IDE is fully user-configurable to convert command line compilers, assemblers and utilities into Windows applications.

  • Integrated Development Environment that simplifies embedded applications development
  • Windows 2000/XP/Vista/7/10 compatible
  • Multi-file Editor with tabs to create and modify C or Assembly source code.
  • Cut, Copy, Paste, Find, Replace, Bookmarks and many more features.
  • Color coding of C and Assembly programs ( including mnemonics )
  • "Remembers" recent files, recent projects and project settings between runs of Micro-IDE.
  • Compiler, assembler, linker output display
  • Built-in Loader to download programs to target microcontroller board following build.
  • Built-in Terminal to interact with the target microcontroller board.
  • Start and stop programs on the target board with a single click
  • Customizable settings and command-line options for building projects.
  • Project Manager: Build all the files that belong to a project with a single mouse click. Customizable settings and command-line options for building projects. Project view of files that are in project.
  • Calculator and ASCII chart.
  • Supports many external toolkits such as C compilers, BASIC compiler and assemblers. Please see complete list below.
Some popular toolkits that are
integrated with Micro-IDE
Microcontroller Language
8051 Simulator 8051 C,ASM
68HC08 Simulator 68HC08 C,ASM
68HC11 Simulator 68HC11 C,ASM
68HC12 Simulator 68HC12 C,ASM
8051 Debugger 8051 C,ASM
Adding Custom Toolkits
ARM Development System ARM7, ARM9 C
BASCOM51 8051 Basic Compiler 8051 BASIC,ASM
BASCOM-AVR Basic Compiler AVR BASIC,ASM
C18 C Compiler PIC C,ASM
CCS C Compiler PIC C,ASM
Micro C 68HC08 Development System 68HC08 C,ASM
Micro C 6809 Development System 6809 C,ASM
Micro C 68HC11 Development System 68HC11 C,ASM
Micro C 68HC12 Development System 68HC12 C,ASM
Micro C 68HC16 Development System 68HC16 C,ASM
Micro C 8051 Development System 8051 C,ASM
Micro C 8086 Development System 8086 C,ASM
Micro C 8096 Development System 8096 C,ASM
MPASM PIC ASM
MSP Development System MSP430 C
SDCC Development System 8051 C,ASM
STM Development System STM C,ASM
AVR Development System AVR Arduino,C,ASM
XTOOLS

Revision History
