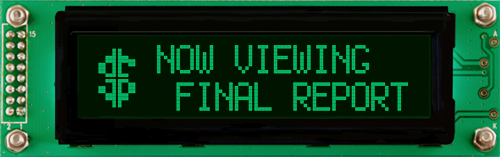

LK202-25-USB-FG
This 20 character by 2 line LCD, comes with an easy to use USB communication interface and has the capability to connect up to a 5 by 5 matrix style keypad.
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide
Features:
| Keypad | 25 |
| One Wire | 1 |
| GPO | 6 |
| Advanced GPO | N/A |
Appearance:
| Module Size | 116.00 mm(L)×37.00 mm(W)×25.73mm(T) |
| Character Size | 5.55 mm(L)×3.20 mm(W) |
| Active Area | 73.50 mm(L)×11.50 mm(W) |
| Background Color | Black |
| Text Color | Green |
| Format | 20 x 2 |
Interface:
| Buffer | 128 Bytes |
| USB | 1200 2400 9600 19200 33600 56700 115200 |
Electrical:
| Standard Temperature | 0°C to 50°C |
| Extended Temp.(-E) | -20°C to 70°C |
| Max Humidity | 90% |
| Supply Current | 50 mA |
| Backlight Current | 185 mA |
| Inrush Current | N/A |
| Part No. | Description | Price | |
|---|---|---|---|
| LK202-25-USB-FG | Base Product | $70 | |
| LK202-25-USB-FG-E | Extended Temperature option. | $80 |
