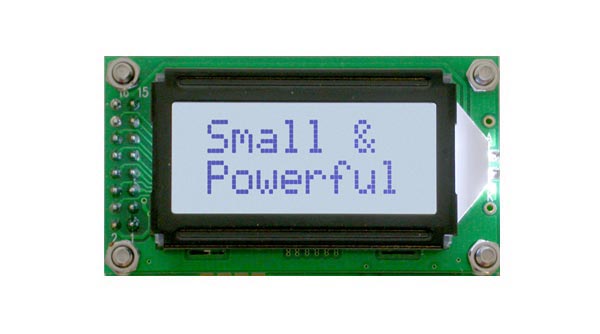

MOP-AL082B-BGFW-25J-3IN

high quality alphanumeric parallel displays feature industry compatible HD44780 4/8 bit controller.

Note: This product does not include the pin header or the cable. For LCD displays with pre-soldered connector and cable, please see LCD... series. Cable can also be purchased separately by clicking here.

Software
Technical Manual
LCD242 Cable
LCD Selection Guide

Features:

IC Package COB

LCD Type Gray STN

Polarizer Transflective

Character Set English / Japanese

Model B

Viewing Angle 12 O'Clock

Controller S6A0069

NegGen N/A

Appearance:

Module Size 58.00 mm(L)×32.00 mm(W)×14.00 mm(T)

Character Size 5.56 mm(L)×2.96 mm(W)

Active Area 27.81 mm(L)×11.50 mm(W)

Background Color White

Format 8 x 2

Electrical:

Standard Temperature -20°C to 70°C

Max Humidity 90%

Supply Current 8 mA

Backlight Current 60 mA

Part No. Description Price

MOP-AL082B-BGFW-25J-3IN Base Product $10

IC Package	COB
LCD Type	Gray STN
Polarizer	Transflective
Character Set	English / Japanese
Model	B
Viewing Angle	12 O'Clock
Controller	S6A0069
NegGen	N/A

Module Size	58.00 mm(L)×32.00 mm(W)×14.00 mm(T)
Character Size	5.56 mm(L)×2.96 mm(W)
Active Area	27.81 mm(L)×11.50 mm(W)
Background Color	White
Format	8 x 2

Standard Temperature	-20°C to 70°C
Max Humidity	90%
Supply Current	8 mA
Backlight Current	60 mA
