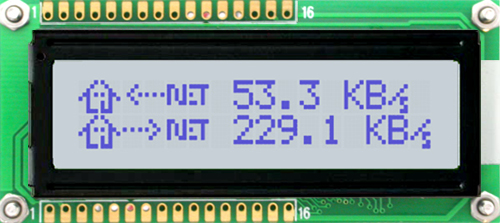

MOP-AL162A-BGFW-25E-3IN

High quality alphanumeric parallel displays feature industry compatible HD44780 4/8 bit controller.Combine it with our X-board S-series to get your project off the ground faster.

Note: This product does not include the pin header or the cable. For LCD displays with pre-soldered connector and cable, please see LCD... series. Cable can also be purchased separately by clicking here.

Software
Technical Manual
LCD242 Cable
LCD Selection Guide

Features:

IC Package COB

LCD Type Gray STN

Polarizer Transflective

Character Set English / European

Model A

Viewing Angle 12 O'Clock

Controller S6A0069

NegGen N/A

Appearance:

Module Size 80.00 mm(L)×36.00 mm(W)×14.00 mm(T)

Character Size 5.55 mm(L)×2.95 mm(W)

Active Area 56.20 mm(L)×11.50 mm(W)

Background Color White

Format 16 x 2

Electrical:

Standard Temperature -20°C to 70°C

Max Humidity 90%

Supply Current 10 mA

Backlight Current 150 mA

Part No. Description Price

MOP-AL162A-BGFW-25E-3IN Base Product $14

IC Package	COB
LCD Type	Gray STN
Polarizer	Transflective
Character Set	English / European
Model	A
Viewing Angle	12 O'Clock
Controller	S6A0069
NegGen	N/A

Module Size	80.00 mm(L)×36.00 mm(W)×14.00 mm(T)
Character Size	5.55 mm(L)×2.95 mm(W)
Active Area	56.20 mm(L)×11.50 mm(W)
Background Color	White
Format	16 x 2

Standard Temperature	-20°C to 70°C
Max Humidity	90%
Supply Current	10 mA
Backlight Current	150 mA
