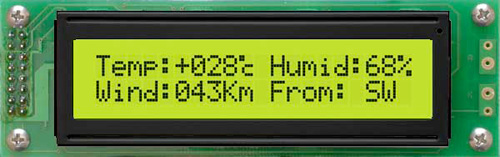

MOP-AL202C-BYFY-25E-3IN

High quality alphanumeric parallel displays feature industry compatible HD44780 4/8 bit...

Note: This product does not include the pin header or the cable. For LCD displays with pre-soldered connector and cable, please see LCD... series. Cable can also be purchased separately by clicking here.

Software
Technical Manual
LCD242 Cable
LCD Selection Guide

Features:

IC Package COB

LCD Type Yellow STN

Polarizer Transflective

Character Set English / European

Model C

Viewing Angle 12 O'Clock

Controller S6A0069

NegGen N/A

Appearance:

Module Size 116.00 mm(L)×37.00 mm(W)×14.50 mm(T)

Character Size 5.50 mm(L)×3.20 mm(W)

Active Area 73.50 mm(L)×11.50 mm(W)

Background Color Yellow/Green

Format 20 x 2

Electrical:

Standard Temperature -20°C to 70°C

Max Humidity 90%

Supply Current 10 mA

Backlight Current 110 mA

Part No. Description Price

MOP-AL202C-BYFY-25E-3IN Base Product $19

IC Package	COB
LCD Type	Yellow STN
Polarizer	Transflective
Character Set	English / European
Model	C
Viewing Angle	12 O'Clock
Controller	S6A0069
NegGen	N/A

Module Size	116.00 mm(L)×37.00 mm(W)×14.50 mm(T)
Character Size	5.50 mm(L)×3.20 mm(W)
Active Area	73.50 mm(L)×11.50 mm(W)
Background Color	Yellow/Green
Format	20 x 2

Standard Temperature	-20°C to 70°C
Max Humidity	90%
Supply Current	10 mA
Backlight Current	110 mA
