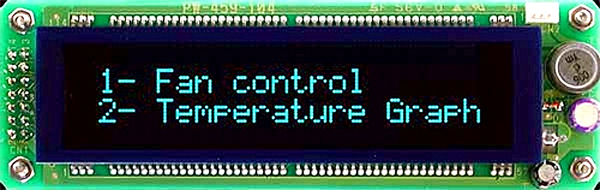

MOP-AV202C-BNNN-01J-3IN

Our high quality alphanumeric parallel displays feature industry compatible HD44780 4/8 bit controller. Combine it with our X-board S-series to get your project off the ground faster.

Note: This product does not include the pin header or the cable. For LCD displays with pre-soldered connector and cable, please see LCD... series. Cable can also be purchased separately by clicking here.

Software
Technical Manual
LCD242 Cable
LCD Selection Guide

Features:

IC Package COB

LCD Type N/A

Polarizer N/A

Character Set English / Japanese

Model C

Viewing Angle N/A

Controller HD44780

NegGen N/A

Appearance:

Module Size 116.00 mm(L)×37.00 mm(W)×15.00 mm(T)

Character Size 5.40 mm(L)×2.40 mm(W)

Active Area 70.80 mm(L)×11.50 mm(W)

Background Color N/A

Text Color Green

Format 20 x 2

Electrical:

Standard Temperature -40°C to 85°C

Supply Current 20 mA

Backlight Current N/A

Part No. Description Price

MOP-AV202C-BNNN-01J-3IN Base Product $149

IC Package	COB
LCD Type	N/A
Polarizer	N/A
Character Set	English / Japanese
Model	C
Viewing Angle	N/A
Controller	HD44780
NegGen	N/A

Module Size	116.00 mm(L)×37.00 mm(W)×15.00 mm(T)
Character Size	5.40 mm(L)×2.40 mm(W)
Active Area	70.80 mm(L)×11.50 mm(W)
Background Color	N/A
Text Color	Green
Format	20 x 2

Standard Temperature	-40°C to 85°C
Supply Current	20 mA
Backlight Current	N/A
