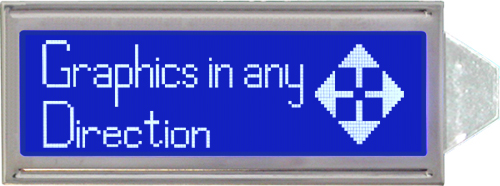

MOP-GL12232D-BBTW-26N-3IN
High quality graphic parallel displays feature industry compatible SED1520 8 bit controller. This display is a grea size for 1U servers and handheld applications and features a beautiful bright backlight. Note: This product does not include the pin header or the cable. For LCD displays with pre-soldered connector and cable, please see LCD... series. Cable can also be purchased separately by clicking here.
Technical Manual
LCD242 Cable
LCD Selection Guide
Features:
| IC Package | COB |
| LCD Type | Blue STN |
| Polarizer | Transmissive |
| Character Set | N/A |
| Model | D |
| Viewing Angle | 12 O'Clock |
| Controller | SED1520 |
| NegGen | N/A |
Appearance:
| Module Size | 65.80 mm(L)×27.00 mm(W)×12.00 mm(T) |
| Pixels | 32(Rows)×122(Cols) |
| Active Area | 53.64 mm(L)×14.04 mm(W) |
| Background Color | White |
Electrical:
| Standard Temperature | -20°C to 70°C |
| Max Humidity | 90% |
| Supply Current | 10 mA |
| Backlight Current | 20 mA |
| Part No. | Description | Price | |
|---|---|---|---|
| MOP-GL12232D-BBTW-26N-3IN | Base Product | $30 |
