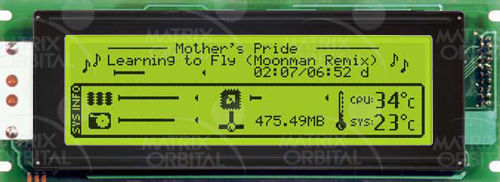

MOP-GL24064A-BYFY-22N-3IN
High quality graphic parallel displays feature industry compatible T6963 8 bit controller. Note: This product does not include the pin header or the cable. For LCD displays with pre-soldered connector and cable, please see LCD... series. Cable can also be purchased separately by clicking here.
Technical Manual
LCD242 Cable
LCD Selection Guide
Features:
| IC Package | COB |
| LCD Type | Yellow STN |
| Polarizer | Transflective |
| Character Set | N/A |
| Model | A |
| Viewing Angle | 12 O'Clock |
| Controller | T6963 |
| NegGen | N/A |
Appearance:
| Module Size | 180.00 mm(L)×65.00 mm(W)×16.00 mm(T) |
| Pixels | 64(Rows)×240(Cols) |
| Active Area | 127.16 mm(L)×33.88 mm(W) |
| Background Color | Yellow/Green |
| Text Color | Black |
Electrical:
| Standard Temperature | -20°C to 70°C |
| Max Humidity | 90% |
| Supply Current | 31 mA |
| Backlight Current | 160 mA |
| Part No. | Description | Price | |
|---|---|---|---|
| MOP-GL24064A-BYFY-22N-3IN | Base Product | $64 |
