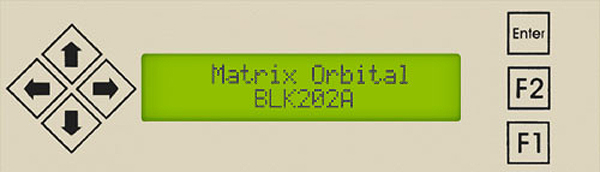

BLK202A
This kit includes the display and all necessary accessories that will allow implantation more easily than ever before. The kit includes the powerful LK202-25-V module with a 5.25' bay insert with a 7 key overlay allowing an easy interface with any headless system.
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide
Photos
Features:
| Keypad | 7 |
| One Wire | N/A |
| GPO | 6 |
| Advanced GPO | N/A |
Appearance:
| Module Size | 116.00 mm(L)×37.00 mm(W)×27.50 mm(T) |
| Character Size | 3.20 mm(L)×5.55 mm(W) |
| Active Area | 73.50 mm(L)×11.50 mm(W) |
| Background Color | Yellow/Green |
| Text Color | Black |
| Format | 20 x 2 |
Interface:
| RS232 | 1200 to |
| RS232 TTL | 1200 to |
| Buffer | 80 Bytes |
| Other | I2C |
Electrical:
| Standard Temperature | 0°C to 50°C |
| Extended Temp.(-E) | -20°C to 70°C |
| Max Humidity | 90% |
| Supply Current | 25 mA |
| Backlight Current | 100 mA |
| Inrush Current | N/A |
| Part No. | Description | Price | |
|---|---|---|---|
| BLK202A | Base Product | $82 | |
| BLK202A-4BR | Add the -4BR communication option. 1ft Serial, PCI bracket and an internal cable. | $83 |
