GLT240128-FGW

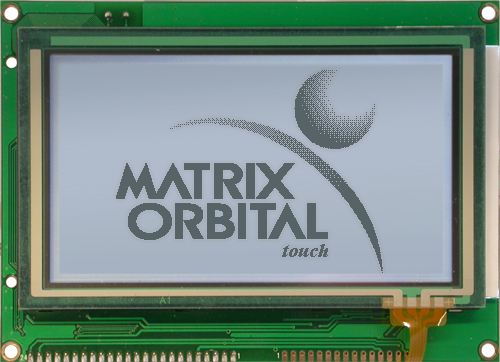

The 240 x 128 graphic LCD can display text in multiple fonts/styles/justification and graphics. ASCII serial commands are sent from the LCD display for switch closures and openings when switches are debounced. When the touchscreen is pressed, you can have the X and Y location sent, or have the on-screen keyboard displayed and touched keys are sent through the serial port. You can have a great looking user interface in no time at all.
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide
Features:
| Keypad | Touch |
| One Wire | N/A |
| GPO | N/A |
| Advanced GPO | N/A |
Appearance:
| Module Size | 144.00 mm(L)×104.00 mm(W)×27.80 mm(T) |
| Pixels | 128(Rows)×240(Cols) |
| Active Area | 107.95 mm(L)×57.55 mm(W) |
| Background Color | White |
| Text Color | Grey |
Interface:
| RS232 | 9600 to 115200 |
| RS232 TTL | 9600 to 115200 |
| Buffer | 128 Bytes |
| Other | I2C |
Electrical:
| Standard Temperature | 0°C to 50°C |
| Extended Temp.(-E) | -20°C to 70°C |
| Max Humidity | 90% |
| Supply Current | 80 mA |
| Backlight Current | 340 mA |
| Inrush Current | N/A |
| Part No. | Description | Price | |
|---|---|---|---|
| GLT240128-FGW | Base Product | $216 | |
| GLT240128-FGW-V | Wide Voltage power, +9 to +15Vdc. | $219 | |
| GLT240128-FGW-VPT | Wide Voltage efficient power regulator +9 to +35Vdc. This option has a one week lead time. | $236 |
