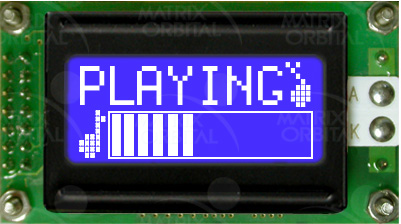

LCD0821-WB
If your product is short on space but needs information at a glance then the LCD0821 will suit your needs. This product is used in military servers and luxury yachts. The 8 characters by 2 lines display maybe just right for your project.
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide
Features:
| Keypad | N/A |
| One Wire | N/A |
| GPO | 1 |
| Advanced GPO | N/A |
Appearance:
| Module Size | 58.00 mm(L)×37.00 mm(W)×25.00 mm(T) |
| Character Size | 5.56 mm(L)×2.96 mm(W) |
| Active Area | 27.80 mm(L)×11.49 mm(W) |
| Background Color | Blue |
| Text Color | White |
| Format | 8 x 2 |
Interface:
| Buffer | 80 Bytes |
Electrical:
| Standard Temperature | 0°C to 50°C |
| Extended Temp.(-E) | -20°C to 70°C |
| Max Humidity | 90% |
| Supply Current | 5 mA |
| Backlight Current | 94 mA |
| Inrush Current | N/A |
| Part No. | Description | Price | |
|---|---|---|---|
| LCD0821-WB | Base Product | $40 | |
| LCD0821-WB-E | Extended Temperature option. | $50 | |
| LCD0821-WB-V | Wide Voltage power, +9 to +15Vdc. | $43 | |
| LCD0821-WB-V-E | Wide Voltage power +9 to +15Vdc. Extended Temperature -20 to +70 C. | $53 |
