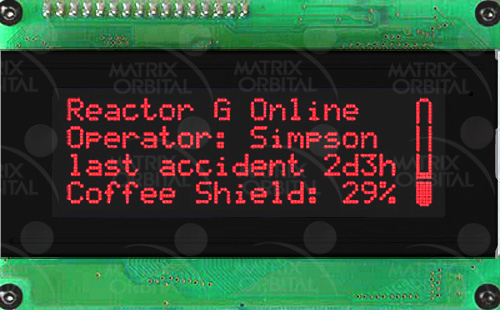

LCD2041-R
The LCD2041 has outstanding speed and is capable of bar graphs or large digits. This affordable unit can be used in many applications.
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide
Features:
| Keypad | N/A |
| One Wire | N/A |
| GPO | 3 |
| Advanced GPO | N/A |
Appearance:
| Module Size | 98.00 mm(L)×60.00 mm(W)×27.50mm(T) |
| Character Size | 4.75 mm(L)×2.95 mm(W) |
| Active Area | 70.40 mm(L)×20.80 mm(W) |
| Background Color | Black |
| Text Color | Red |
| Format | 20 x 4 |
Interface:
| RS232 | 1200 to |
| RS232 TTL | 1200 to |
| Buffer | 80 Bytes |
Electrical:
| Standard Temperature | 0°C to 50°C |
| Extended Temp.(-E) | -20°C to 70°C |
| Max Humidity | 90% |
| Supply Current | 10 mA |
| Backlight Current | 90 mA |
| Inrush Current | N/A |
| Part No. | Description | Price | |
|---|---|---|---|
| LCD2041-R | Base Product | $65 | |
| LCD2041-R-E | Extended Temperature option. | $75 | |
| LCD2041-R-V | Wide Voltage power, +9 to +15Vdc. | $68 | |
| LCD2041-R-V-E | Wide Voltage power +9 to +15Vdc. Extended Temperature -20 to +70 C. | $78 | |
| LCD2041-R-VPT | Wide Voltage efficient power regulator +9 to +35Vdc. This option has a one week lead time. | $85 | |
| LCD2041-R-VPT-E | Wide Voltage efficient power regulator +9 to +35Vdc. Extended Temperature -20 to +70 C. | $95 |
