MOS-AL162A-XR3SE

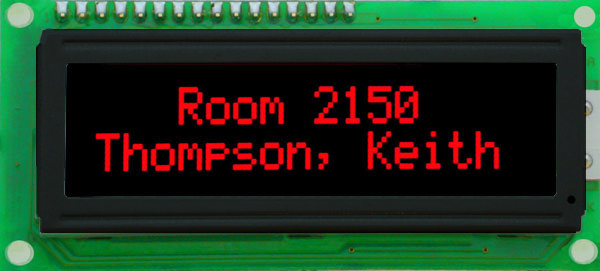

This 16 character by 2 line LCD display comes with an easy to use RS232 communication interface and 3 General Purpose Outputs.
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide
Features:
| Keypad | N/A |
| One Wire | N/A |
| GPO | 3 |
Appearance:
| Module Size | 80.00 mm(L)×36.00 mm(W)×25.60 mm(T) |
| Character Size | 5.55 mm(L)×2.95 mm(W) |
| Active Area | 56.20 mm(L)×11.50 mm(W) |
| Background Color | Black |
| Text Color | Red |
| Format | 16 x 2 |
Interface:
| RS232 TTL | 9600 to bps |
| Buffer | 128 Bytes |
Electrical:
| Standard Temperature | 0°C to 50°C |
| Max Humidity | 90% |
| Supply Current | 33 mA |
| Backlight Current | 150 mA |
| Part No. | Description | Price | |
|---|---|---|---|
| MOS-AL162A-XR3SE | Base Product | $35 |
