MX532

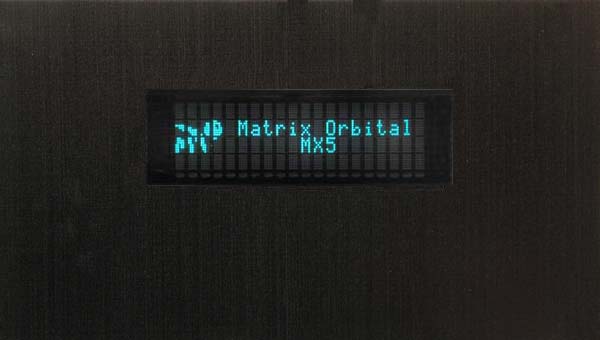

With the new MX5 series we have enlarged the size of the display and added more keypad functionality. This double drive bay PC insert incorporates a vacuum florescent 20 character x 4 line USB display and a 15 button keypad. The MX5 also allows you to plug 4 fans and 6 temperature probes directly into the back of the unit for all you quiet and cooling PC needs. Includes everything you will need to get going.
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide
Features:
| Keypad | 15 |
| One Wire | 6 |
| GPO | 3 |
| Advanced GPO | 4 |
Appearance:
| Module Size | 98.00 mm(L)×60.00 mm(W)×24.40 mm(T) |
| Character Size | 2.40 mm(L)×4.70 mm(W) |
| Active Area | 70.40 mm(L)×20.80 mm(W) |
| Background Color | Dark |
| Text Color | Blue |
| Format | 20 x 4 |
Interface:
| RS232 TTL | 19200 to |
| Buffer | 80 Bytes |
| USB | 19200 |
Electrical:
| Standard Temperature | 0°C to 70°C |
| Max Humidity | 90% |
| Supply Current | 25 mA |
| Backlight Current | 115 mA |
| Inrush Current | 115 mA |
| Part No. | Description | Price | |
|---|---|---|---|
| MX532 | Base Product | $149 |
