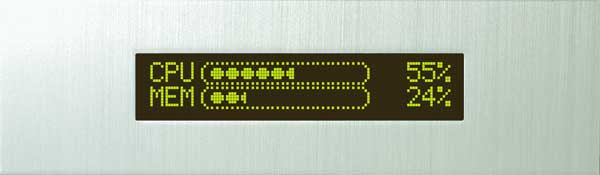

MX224
Feeling out of touch with the world? Worried about your portfolio? Want to know the latest weather updates? With the MX2 series you can receive the latest information and have it scroll across your screen. With the MX2 series you can now monitor CPU statistics, Hard drive space, and other system critical information. The MX2 also allows you to plug 3 fans and 4 temperature probes directly into the back of the unit for all you quiet and cooling PC needs. Includes everything you will need to get going.
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide
Features:
| Keypad | 7 |
| One Wire | 4 |
| GPO | 3 |
| Advanced GPO | 3 |
Appearance:
| Module Size | 116.00 mm(L)×37.00 mm(W)×27.50 mm(T) |
| Character Size | 5.55 mm (L)×3.20 mm(W) |
| Active Area | 73.50 mm(L)×11.50 mm(W) |
| Background Color | Black |
| Text Color | Yellow |
| Format | 20 x 2 |
Interface:
| RS232 TTL | 19200 to |
| Buffer | 80 Bytes |
| USB | 19200 |
Electrical:
| Standard Temperature | 0°C to 50°C |
| Supply Current | 25 mA |
| Backlight Current | 115 mA |
| Inrush Current | N/A |
| Part No. | Description | Price | |
|---|---|---|---|
| MX224 | Base Product | $99 |
