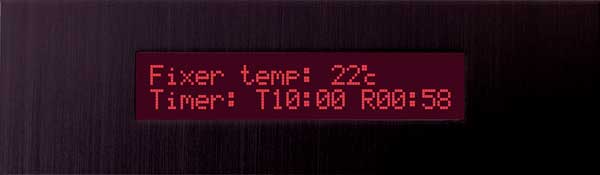

MX233
For the music admirer, use Winamp 2 or 3 to monitor your personal music selection. You don't need to be a PC enthusiast anymore to enjoy the benefits of this unit. With the MX2 series you can now monitor CPU statistics, Hard drive space, and other system critical information. The MX2 also allows you to plug 3 fans and 4 temperature probes directly into the back of the unit for all you quiet and cooling PC needs. Includes everything you will need to get going.
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide
Features:
| Keypad | 7 |
| One Wire | 4 |
| GPO | 3 |
| Advanced GPO | 3 |
Appearance:
| Module Size | 116.00 mm(L)×37.00 mm(W)×27.50 mm(T) |
| Character Size | 5.55 mm (L)×3.20 mm(W) |
| Active Area | 73.50 mm(L)×11.50 mm(W) |
| Background Color | Black |
| Text Color | Red |
| Format | 20 x 2 |
Interface:
| RS232 TTL | 19200 to |
| Buffer | 80 Bytes |
| USB | 19200 |
Electrical:
| Standard Temperature | 0°C to 50°C |
| Supply Current | 25 mA |
| Backlight Current | 115 mA |
| Inrush Current | N/A |
| Part No. | Description | Price | |
|---|---|---|---|
| MX233 | Base Product | $99 |
