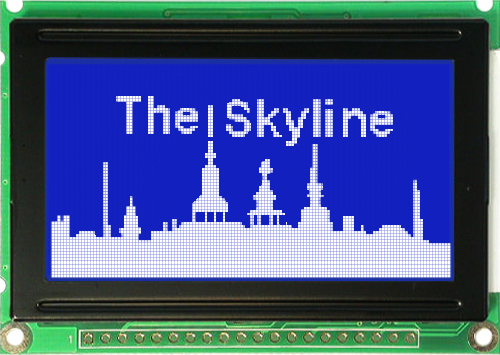

GLK240128-25-WB
The GLK240128-25 is a large graphic display that gives you the room to display many pictures and text all at the same time. Our graphic displays offer you high speeds and an easy to use command interface. This gives you the flexibility to quickly download high quality fonts in any size, style or language, and create graphics using primitives such as bitmaps, pixels, lines, rectangles and bar graphs.
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide
Features:
| Keypad | 25 |
| One Wire | N/A |
| GPO | N/A |
| Advanced GPO | N/A |
Appearance:
| Module Size | 144.00 mm(L)×104.00 mm(W)×15.00 mm(T) |
| Pixels | 128(Rows)×240(Cols) |
| Active Area | 107.95 mm(L)×57.55 mm(W) |
| Background Color | Blue |
| Text Color | White |
Interface:
| RS232 | 9600 to 115200 |
| RS232 TTL | 9600 to 115200 |
| Buffer | 120 Bytes |
| Other | I2C |
Electrical:
| Standard Temperature | 0°C to 50°C |
| Extended Temp.(-E) | -20°C to 70°C |
| Max Humidity | 90% |
| Supply Current | 47 mA |
| Backlight Current | 240 mA |
| Inrush Current | N/A |
| Part No. | Description | Price | |
|---|---|---|---|
| GLK240128-25-WB | Base Product | $196 | |
| GLK240128-25-WB-E | Extended Temperature option. | $206 | |
| GLK240128-25-WB-V | Wide Voltage power, +9 to +15Vdc. | $199 | |
| GLK240128-25-WB-V-E | Wide Voltage power +9 to +15Vdc. Extended Temperature -20 to +70 C. | $237 | |
| GLK240128-25-WB-VPT | Wide Voltage efficient power regulator +9 to +35Vdc. This option has a one week lead time. | $216 | |
| GLK240128-25-WB-VPT-E | Wide Voltage efficient power regulator +9 to +35Vdc. Extended Temperature -20 to +70 C. | $226 |
