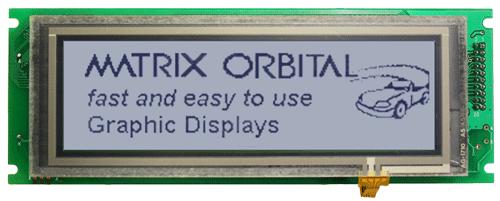

GLT24064-FGW
Full touch screen, no keypad needed! Our Graphic LCD Touch Panel provides you with a cost effective user interface solution for that great product/project you are developing. On board memory for Fonts and Bitmaps! This touch screen graphic LCD displays graphics and text in any font, style, justification and language, all with the convenience of a touch screen.
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide
Features:
| One Wire | 1 |
Appearance:
| Module Size | 180.00 mm(L)×65.00 mm(W)×30.50 mm(T) |
| Pixels | 240(Rows)×64(Cols) |
| Active Area | 132.20 mm(L)×39.20 mm(W) |
| Background Color | Grey/White |
| Text Color | Blue |
Interface:
| RS232 | 1200 to 115200 |
| Buffer | 128 Bytes |
Electrical:
| Standard Temperature | 0°C to 50°C |
| Max Humidity | 90% |
| Supply Current | 45 mA |
| Backlight Current | 220 mA |
| Inrush Current | N/A |
| Part No. | Description | Price | |
|---|---|---|---|
| GLT24064-FGW | Base Product | $190 | |
| GLT24064-FGW-V | Wide Voltage power, +9 to +15Vdc. | $192 | |
| GLT24064-FGW-VPT | Wide Voltage efficient power regulator +9 to +35Vdc. This option has a one week lead time. | $210 |
