GLK240128-25-USB

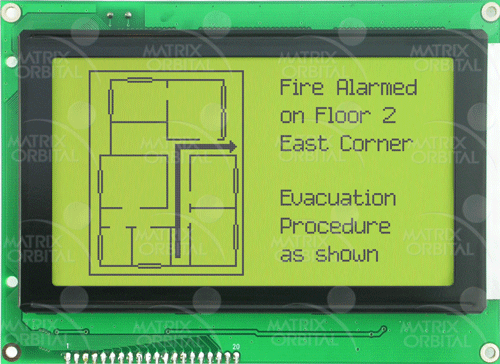

The GLK240128-25-USB is a large graphic display that gives you the room to display many pictures and text all at the same time. Our graphic displays offer you high speeds and an easy to use command interface. This gives you the flexibility to quickly download high quality fonts in any size, style or language, and create graphics using primitives such as bitmaps, pixels, lines, rectangles and bar graphs.
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide
Features:
| Keypad | 25 |
Appearance:
| Module Size | 144.00 mm(L)×104.00 mm(W)×15.00 mm(T) |
| Pixels | 128(Rows)×240(Cols) |
| Active Area | 114.00 mm(L)×64.00 mm(W) |
| Background Color | Yellow/Green |
| Text Color | Black |
Interface:
| Buffer | 120 Bytes |
| USB | 19200 33600 56700 115200 |
| Other | I2C |
Electrical:
| Standard Temperature | 0°C to 50°C |
| Extended Temp.(-E) | -20°C to 70°C |
| Max Humidity | 90% |
| Supply Current | 47 |
| Backlight Current | 240 mA |
| Inrush Current | N/A |
| Part No. | Description | Price | |
|---|---|---|---|
| GLK240128-25-USB | Base Product | $201 | |
| GLK240128-25-USB-E | Extended Temperature option. | $211 |
