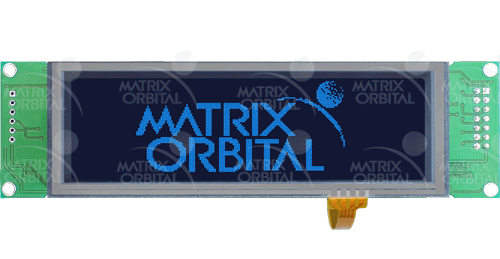

GLT24064R-1U-USB-TCI
Full touch screen, no keypad needed! Our Graphic LCD Touch Panel provides you with a cost effective user interface solution for that great product/project you are developing. On board memory for Fonts and Bitmaps! This touch screen graphic LCD displays graphics and text in any font, style, justification and language, all with the convenience of a touch screen.
With these USB LCD displays you can fit a touch screen even into an application with limited space, these high resolution displays will fit into a 1U slot.
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide
Features:
| Keypad | N/A |
| One Wire | USB or Custom |
| GPO | 6 |
Appearance:
| Module Size | 112.00 mm(L)×38.00 mm(W)×28.90 mm(T) |
| Pixels | 64(Rows)×240(Cols) |
| Active Area | 98.00 mm(L)×28.40 mm(W) |
| Background Color | Black |
| Text Color | TriColor |
Interface:
| Buffer | 128 Bytes |
| USB | 1200 2400 9600 19200 115200 |
Electrical:
| Standard Temperature | 0°C to 50°C |
| Extended Temp.(-E) | -20°C to 70°C |
| Max Humidity | 90% |
| Supply Current | 45 |
| Backlight Current | 205 mA |
| Inrush Current | N/A |
| Part No. | Description | Price | |
|---|---|---|---|
| GLT24064R-1U-USB-TCI | Base Product | $140 | |
| GLT24064R-1U-USB-TCI-VPT | Wide Voltage efficient power regulator +9 to +35Vdc. This option has a one week lead time. | $160 |
