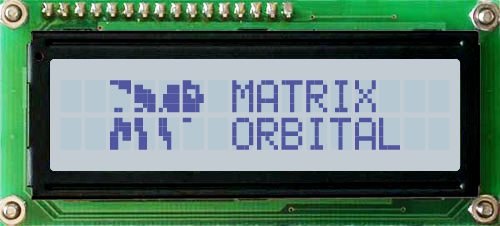

LK162-12-USB-GW
Easy-to-use character 16X2 LCD with following features which highlight the Matrix Orbital Advantage:
-industry standard USB Protocol. USB 1.0 and 2.0 supported
-easy-to-use virtual comm port in Windows
-connect to a wide variety of host controllers
-lightning faster communication speeds
-control of brightness, baud rate, and screen contrast
-create up to 8 custom characters
-user interaction through a 3x4 matrix style keypad or 7 general purpose outputs
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide
Features:
| Keypad | 12 |
| GPO | 7 |
Appearance:
| Module Size | 80.00mm(L)×36.00mm(W)×28.82mm(T) |
| Character Size | 2.95mm(L)×5.55mm(W) |
| Active Area | 64.50mm(L)×17.50mm(W) |
| Background Color | White |
| Text Color | Gray |
| Format | 16 x 2 |
Interface:
| RS232 | 19200 to 1200 |
| RS232 TTL | 19200 to 1200 |
| Buffer | 128 bytes Bytes |
| USB | 115200 33600 19200 9600 2400 1200 |
Electrical:
| Standard Temperature | 0°C to 50°C |
| Extended Temp.(-E) | -20°C to 70°C |
| Max Humidity | 90% |
| Supply Current | 40 mA |
| Backlight Current | 30 mA |
| Part No. | Description | Price | |
|---|---|---|---|
| LK162-12-USB-GW | Base Product | $55 | |
| LK162-12-USB-GW-E | Extended Temperature option. | $65 |
