GLT24064R-1U-422-FGW

Full touch screen, no keypad needed!

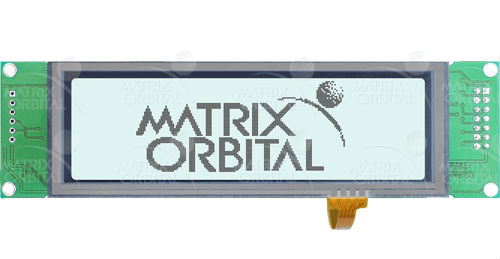

The GLT24064R-25-1U is an intelligent graphic LCD engineered to quickly and easily add an elegant creativity to any application.

Our Graphic LCD Touch Panel provides you with a cost effective user interface solution for that great project or product you are developing.

The simple command structure permits easy software control of many settings including backlight brightness, screen contrast, and baud rate. On board memory provides a whopping 256KB of customizable fonts and bitmaps to enhance the graphical user experience.

The GLK24064R-1U-422 provides an industrial alternative to the standard RS232 communication protocol. Rather than single receive and transmit lines, the RS422 model uses a differential pair for each of the receive and transmit signals to reduce degradation and increase transmission lengths. Power can be transmitted at distance to a -VPT module. RS422 signals are available in a six pin connector as described in the RS422 Connections section. This display offers communication speeds of up to 115.2kbps for serial protocols.

We HIGHLY Recommends that you use a -VPT module for any RS422 units.Due to the industrial nature of RS422, -VPT modules add a layer of protection, increased efficiency and create a more reliable system.
