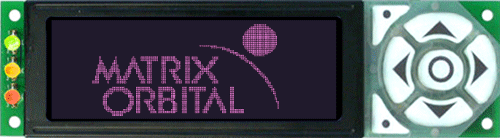

GLK19264A-7T-1U-TCI

---

This is a serial (RS232, I2C) 192 by 64 pixel graphic LCD with a 7 key tactile keypad and 3 status indicating LEDs. Fits into a 1U opening.

Please note: this is a new product using PCB revision 2.0.

Software
Cables
LCD Selection Guide
Keypad Selection Guide

Features:

---

Keypad	7
One Wire	N/A
GPO	6
Advanced GPO	N/A

Appearance:

---

Module Size	144.00 mm(L)×38.00 mm(W)×33.00 mm(T)
Pixels	64(Rows)×192(Cols)
Active Area	74.85 mm(L)×24.93 mm(W)
Background Color	Black
Text Color	Tri-Color

Interface:

---

RS232	9600 to 115200
RS232 TTL	9600 to 115200
Buffer	128 Bytes
Other	I2C

Electrical:

---

Standard Temperature	0°C to 50°C
Extended Temp.(-E)	-20°C to 70°C
Max Humidity	90%
Supply Current	90 mA
Backlight Current	125 mA
Inrush Current	N/A

Part No.	Description	Price
GLK19264A-7T-1U-TCI	Base Product	$103
GLK19264A-7T-1U-TCI-E	Extended Temperature option.	$113
GLK19264A-7T-1U-TCI-LV	Low Voltage Power +3.3V	$105
GLK19264A-7T-1U-TCI-LV-E	Low Voltage Power +3.3V. Extended Temperature Option.	$115
GLK19264A-7T-1U-TCI-VPT	Wide Voltage efficient power regulator +9 to +35Vdc. This option has a one week lead time.	$123
GLK19264A-7T-1U-TCI-VPT-E	Wide Voltage efficient power regulator +9 to +35Vdc. Extended Temperature -20 to +70 C.	$133
