GLK19264A-7T-1U-USB-TCI

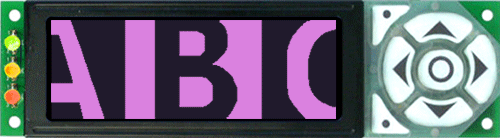

This is a USB 192 by 64 pixel graphic LCD with a 7 key tactile keypad and 3 status indicating LEDs. Fits into a 1U opening.
Please note: this is a new product using PCB revision 2.0.
SoftwareCablesLCD Selection GuideKeypad Selection Guide
Features:
| Keypad | 7 |
| One Wire | N/A |
| GPO | 6 |
| Advanced GPO | N/A |
Appearance:
| Module Size | 144.00 mm(L)×38.00 mm(W)×33.00 mm(T) |
| Pixels | 64(Rows)×192(Cols) |
| Active Area | 74.85 mm(L)×24.93 mm(W) |
| Background Color | Black |
| Text Color | Tri-Color |
Interface:
| Buffer | 128 Bytes |
| USB | 19200 33600 56700 115200 |
Electrical:
| Standard Temperature | 0°C to 50°C |
| Extended Temp.(-E) | -20°C to 70°C |
| Max Humidity | 90% |
| Supply Current | 90 mA |
| Backlight Current | 140 mA |
| Inrush Current | N/A |
| Part No. |
Description |
Price |
|
| GLK19264A-7T-1U-USB-TCI |
Base Product |
$103
|
|
| GLK19264A-7T-1U-USB-TCI-E |
Extended Temperature option. |
$113
|
|
