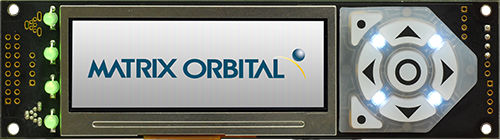

GTT29A is a full colour TFT display with an integrated keypad, crafted to become a crisp, controllable canvas for creativity. Utilizing an extended version of our widely used command library and industry standard communication protocols, the customizable GTT29A series contains an intelligent display that will quickly become the gorgeous face of your application.
Full 16bit color graphic 2.9' 320x102 TFT display
Available communication interfaces: RS232, I2C, TTL and USB
Resistive Touch panel and 7 buttons keypad
Two available voltage options: 5 Vdc or 9-35 Vdc
2 GB of on-board memory for fonts, animations, graphics and graphs
A powerful Cortex M3 processor running at 120MHz
32MB of RAM
Programmable to display any language
Piezo Buzzer and vibratory motor to provide audio and tactile feedback
6 General Purpose Outputs
Simple command structure for fast and easy development
Hardware flow control
This is a 2.9' Touch Screen 320x102 TFT, Serial RS232 Interface, 5V Power.
