EVE2-USB2SPI-KIT-A Display Module

EVE2-USB2SPI-KIT-A


The Matrix Orbital USB to SPI Bridge utilizes FTDI's FT232H IC, allowing users to communicate to their SPI devices through a USB interface. Made specifically to be used with the Matrix Orbital EVE2/EVE3 series of displays, the USB to SPI Bridge can help decrease development time and reduce development hardware complexity.

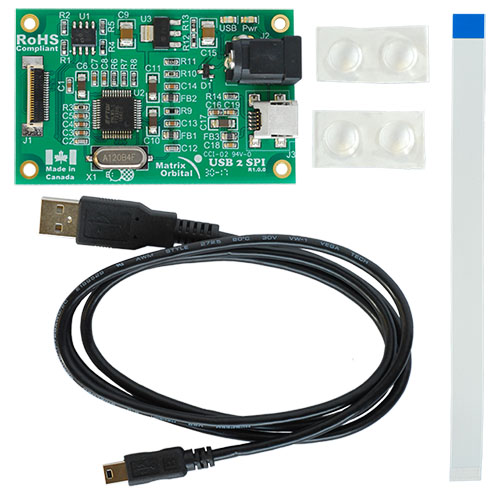

The USB to SPI Development Kit for Matrix Orbital EVE Display Modules Includes:

  • USB to SPI Bridge Module
  • Mini-B USB Cable (EXTMUSB3FT)
  • 20pin Flat Flexible Cable (FFC-20P)
  • Four (4) Bumpons

Software
Hardware Manual
EVE 2 Module Manual
EVE 3 Module Manual
Cables
LCD Selection Guide
Keypad Selection Guide

Features:


ControllerFT232R

Appearance:



Interface:


OtherUSB, SPI

Electrical:


Standard Temperature0°C to 50°C
Extended Temp.(-E)-20°C to 70°C
Supply Current80 mA

Part No. Description Price
EVE2-USB2SPI-KIT-A Base Product $20
