GTT35A-TPC-BLM-B0-H1-CU-V5 Display Module

GTT35A-BLM-B0-H1-CU

Bring your project to life with an abundance of colors, controllable with an easy-to-use touch screen with the added option of using a matrix style keypad.

With our extensive selection of interface options communicating will always be easy!

Introducing the new 3.5' GTT Series with smart features and fast speeds!

  • Full 16bit color graphic 3.5' 320x240 TFT display
  • Available communication interfaces: RS232, I2C, TTL, RS422 and USB
  • Resistive or Capacitive Touch panel and 25 key matrix style keypad
  • Two available voltage options: 5 Vdc or 9-35 Vdc
  • 2 GB of on-board memory for fonts, animations, graphics and graphs
  • A powerful Cortex M3 processor running at 120MHz
  • 32MB of RAM
  • Programmable to display any language
  • Piezo Buzzer and vibratory motor to provide audio and tactile feedback
  • 6 General Purpose Outputs
  • Simple command structure for fast and easy development
  • Hardware flow control

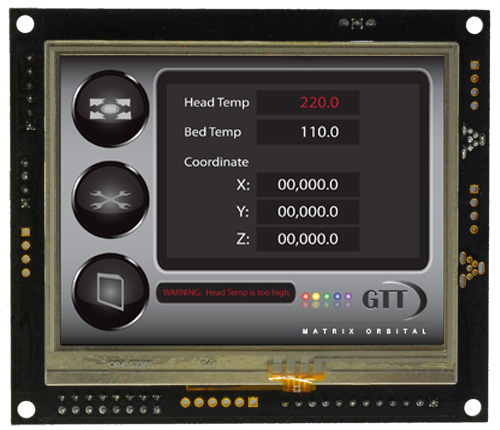

This is a 3.5' Touch Screen 320x240 TFT, USB Interface.

Software
GTT Developer Manual
GTT Protocol Manual
Cables
LCD Selection Guide
Keypad Selection Guide

Features:

Keypad25
GPO6
LCD TypeGraphic TFT Touch
PolarizerTransmissive
ModelA

Appearance:

Module Size90.00 mm(L)×78.00 mm(W)×19.53 mm(T)
Pixels320(Rows)×240(Cols)
Active Area70.08 mm(L)×52.56 mm(W)
Background ColorBlack
Text ColorFull Color

Interface:

Buffer4096 bytes Bytes
OtherPiezo Buzzer, Tactical Feedback

Electrical:

Standard Temperature0°C to 50°C
Extended Temp.(-E)-20°C to 70°C
Max Humidity0%
Supply Current275 mA
Backlight Current150 mA

Part No. Description Price
GTT35A-TPR-BLM-B0-H1-CU-V5 Resistive panel 3.5' Touch Screen 320x240 TFT, USB Interface, 5V Power. $144
GTT35A-TPR-BLM-B0-H1-CU-VPT Resistive panel 3.5' Touch Screen 320x240 TFT, USB Interface, 9-35V Power. $154
GTT35A-TPC-BLM-B0-H1-CU-V5 Capacitive panel 3.5' Touch Screen 320x240 TFT, USB Interface, 5V Power. $154
GTT35A-TPC-BLM-B0-H1-CU-VPT Capacitive panel 3.5' Touch Screen 320x240 TFT, USB Interface, 9-35V Power. $164
