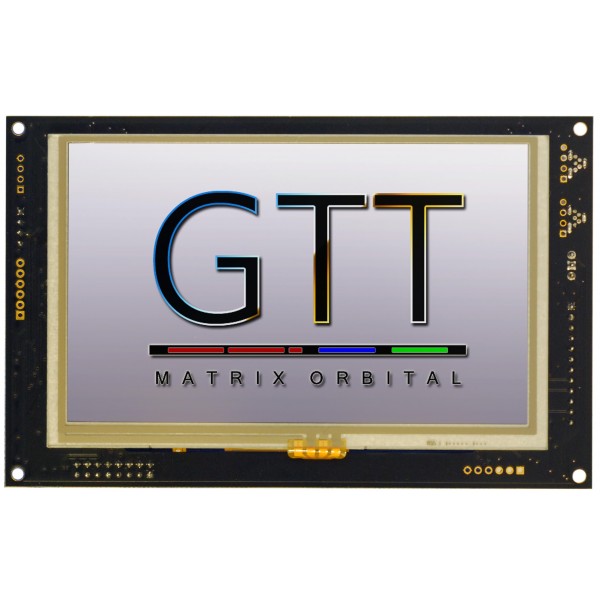

GTT50A-TPC-BLM-B0-H1-CS-V5 Display Module

GTT50A-BLM-H1-CS

Bring your project to life with an abundance of colors, controllable with an easy-to-use touch screen with the added option of using a matrix style keypad.

With our extensive selection of interface options communicating will always be easy!

Introducing the new re-designed GTT Series with smart new features and faster speeds!

  • Full 16bit color graphic 5.0' 800x480 TFT display
  • Available communication interfaces: RS232, I2C, TTL, RS422 and USB
  • Resistive or Capacitive Touch panel and 25 key matrix style keypad
  • Two available voltage options: 5 Vdc or 9-35 Vdc
  • 2 GB of on-board memory for fonts, animations, graphics and graphs
  • A powerful Cortex M3 processor running at 120MHz
  • 32MB of RAM
  • Programmable to display any language
  • Piezo Buzzer and vibratory motor to provide audio and tactile feedback
  • 6 General Purpose Outputs
  • Simple command structure for fast and easy development
  • Hardware flow control

This is a 5.0' Touch Screen 800x480 TFT, Serial RS232 Interface.

Software
GTT Developer Manual
GTT Protocol Manual
Cables
LCD Selection Guide
Keypad Selection Guide

Features:

Keypad25
GPO6
LCD TypeGraphic TFT Touch
PolarizerTransmissive
ModelA

Appearance:

Module Size142.00 mm(L)×90.00 mm(W)×17.00 mm(T)
Pixels480(Rows)×800(Cols)
Active Area108.00 mm(L)×64.80 mm(W)
Background ColorBlack
Text ColorRGB

Interface:

Buffer4096 bytes Bytes
OtherPiezo Buzzer, Tactical Feedback

Electrical:

Standard Temperature0°C to 50°C
Extended Temp.(-E)-20°C to 70°C
Max Humidity0%
Supply Current265 mA
Backlight Current350 mA

Part No. Description Price
GTT50A-TPN-BLM-H1-CS-V5 5.0' 800x480 intelligent Graphic TFT display, Serial RS232 Interface, 5V Power. $185
GTT50A-TPR-BLM-B0-H1-CS-V5 Resistive panel 5.0' Touch Screen 800x480 TFT, Serial RS232 Interface, 5V Power. $187
GTT50A-TPN-BLM-H1-CS-VPT 5.0' 800x480 intelligent Graphic TFT display, Serial RS232 Interface, 9-35V Power. $195
GTT50A-TPR-BLM-B0-H1-CS-VPT Resistive panel 5.0' Touch Screen 800x480 TFT, Serial RS232 Interface, 9-35V Power. $197
GTT50A-TPC-BLM-B0-H1-CS-V5 Capacitive panel 5.0' Touch Screen 800x480 TFT, Serial RS232 Interface, 5V Power. $197
GTT50A-TPC-BLM-B0-H1-CS-VPT Capacitive panel 5.0' Touch Screen 800x480 TFT, Serial RS232 Interface, 9-35V Power. $207
