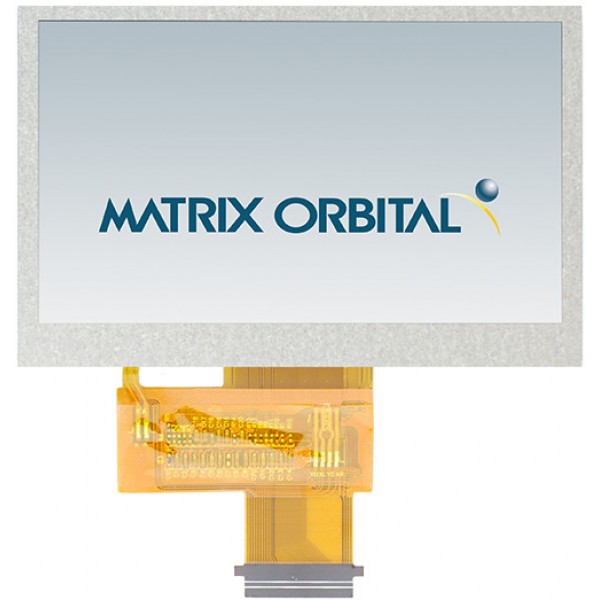

MOP-TFT480272-43A-BLM-TPN Display Module

MOP-TFT480272-43A

The MOP-TFT480272-43A is 480x272 pixel, 4.3' parallel 24bit RGB interface TFT.

This low cost display solution utilizes an industry standard RGB communication interface for simple integration into a wide variety of new and existing applications. The Light Emitting Diode backlight with PWM controlled brightness allows the MOP Thin Film Transistor line to offer a professional display solution for any project.

  • Non Touch, Restive Touch or Capacitive Touch
  • Fast and easy development
  • Designed in CANADA
  • Long life cycle
  • Backed my Matrix Orbital's decades of research and development

Note: This product does not include the pin header or the cable. For LCD displays with pre-soldered connector and cable, please see LCD... series. Cable can also be purchased separately by clicking here.

Software
MOP-TFT480272-43A-BLM-TPC Manual
LCD242 Cable
LCD Selection Guide

Features:

KeypadN/A
GPON/A
Advanced GPON/A
LCD TypeTFT - Color
Character SetMultilingual
Viewing Angle140
ControllerHX8264+HX8664

Appearance:

Pixels480(Rows)×272(Cols)
Active Area95.04 mm(L)×53.86 mm(W)
Background ColorBlack
Text ColorFull Color

Electrical:

Standard Temperature-20°C to 70°C

Part No. Description Price
MOP-TFT480272-43A-BLM-TPN 480x272 pixel, 4.3' parallel 24bit RGB interface TFT, Non Touch $50
MOP-TFT480272-43A-BLM-TPR 480x272 pixel, 4.3' parallel 24bit RGB interface TFT, Restive Touch $55
MOP-TFT480272-43A-BLM-TPC 480x272 pixel, 4.3' parallel 24bit RGB interface TFT, Capacitive Touch $65
