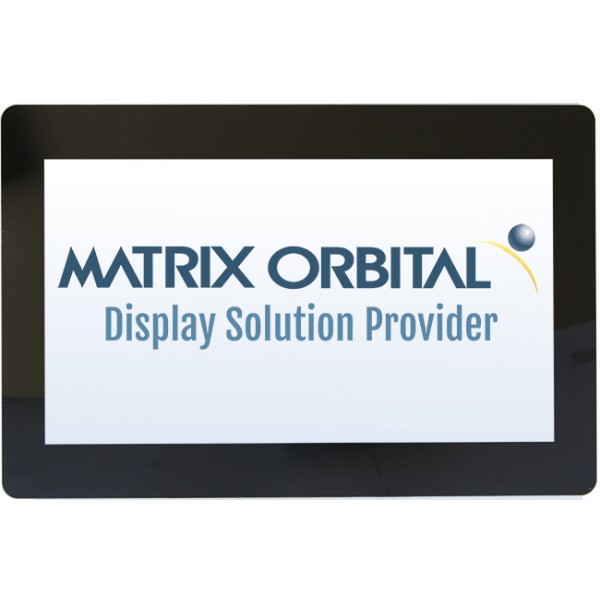

MOP-TFT800480-70G-BLM-TPC Display Module

MOP-TFT800480-70G

The MOP-TFT800480-70G is 800x480 pixel, 7.0' parallel 24bit RGB interface TFT.

This low cost display solution utilizes an industry standard RGB communication interface for simple integration into a wide variety of new and existing applications. The Light Emitting Diode backlight with PWM controlled brightness allows the MOP Thin Film Transistor line to offer a professional display solution for any project.

  • Oversized Mountable Capacitive Touch Screen
  • 3M 300LSE adhesives
  • Fast and easy development
  • Designed in CANADA
  • Long life cycle
  • Backed my Matrix Orbital``s decades of research and development

Note: This product does not include the pin header or the cable. For LCD displays with pre-soldered connector and cable, please see LCD... series. Cable can also be purchased separately by clicking here.

Software
Hardware Manual
LCD242 Cable
LCD Selection Guide

Features:

KeypadN/A
GPON/A
Advanced GPON/A
LCD TypeTFT - Color
Character SetMultilingual
Viewing Angle140
ControllerHX8264+HX8664

Appearance:

Pixels800(Rows)×480(Cols)
Active Area153.84 mm(L)×85.63 mm(W)
Background ColorBlack
Text ColorFull Color

Electrical:

Standard Temperature-20°C to 70°C

Part No. Description Price
MOP-TFT800480-70G-BLM-TPC 7.0' TFT 800x480 parallel 24bit RGB with Oversize Mountable Capacitive Touch Screen $95
