eGTT35A-BLM-B0-H1-CU

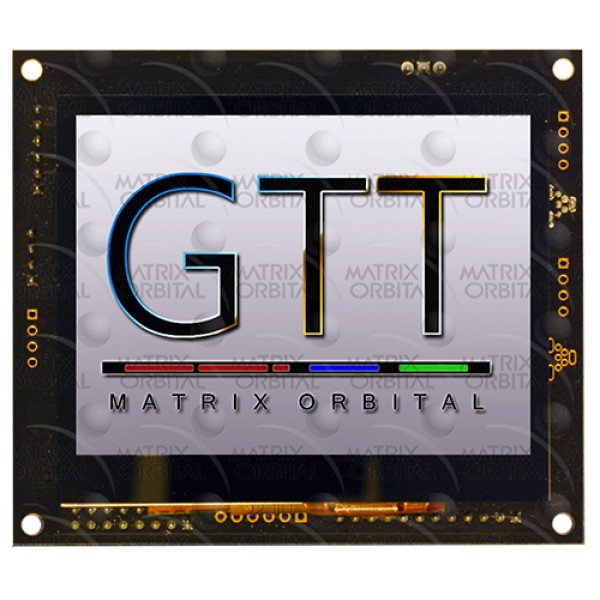

The eGTT35A is an intelligent graphic lcd TFT display that features a full color resistive, or capacitive touchscreen. With the available - industry standard - communication protocols (serial RS232, TTL, I2C, RS422 and USB) communicating, controlling and interacting with the display is easily achieved.
Included features, like the piezo speaker and vibratory motor, provide tactile and audio feedback for a comfortable, confident user interaction. Additionally, the field updatable micro SD card stores font and bitmap files to liberate space and resources for use by the microcontroller, Arduino, or other HMI controller. Suitable for a wide range of applications, and with a resolution of 320 x 240, the eGTT35A is a complete display solution that will quickly become the bright fresh face of your machine or user interface.
Pair the eGTT series with our free software - GTT Designer - to design screens and user interactions quickly and easily. The software, which is compatible with all GTT displays, is a fully graphical, object-on, drag and drop suite with a library of built-in objects. Including: graphs, charts, buttons and animations. The interface was designed so no technical expertise is required to create a fully interactive user interface in minutes.
This is 320 x 240 intelligent Graphic LCD TFT display that features a full color resistive or capacitive touchscreen in USB protocol.
GTT Developer Manual
GTT Protocol Manual
Cables
LCD Selection Guide
Keypad Selection Guide
Features:
| Keypad | 25 |
| GPO | 6 |
| LCD Type | Graphic TFT Touch |
| Polarizer | Transmissive |
| Model | A |
| Controller | LPC1788 |
Appearance:
| Module Size | 98.00 mm(L)×78.00 mm(W)×19.53 mm(T) |
| Pixels | 320(Rows)×240(Cols) |
| Active Area | 70.08 mm(L)×52.56 mm(W) |
| Background Color | Black |
| Text Color | Full Color |
Interface:
| Buffer | 4096 bytes Bytes |
| Other | Piezo Buzzer, Tactical Feedback |
Electrical:
| Standard Temperature | 0°C to 50°C |
| Extended Temp.(-E) | -20°C to 70°C |
| Max Humidity | 0% |
| Supply Current | 275 mA |
| Backlight Current | 150 mA |
| Part No. | Description | Price | |
|---|---|---|---|
| eGTT35A-TPN-BLM-B0-H1-CU-V5 | 3.5' 320x240 intelligent Graphic TFT display, USB Interface, 5V Power. | $80 | |
| eGTT35A-TPR-BLM-B0-H1-CU-V5 | Resistive panel 3.5' Touch Screen 320x240 TFT, USB Interface, 5V Power. | $83 | |
| eGTT35A-TPN-BLM-B0-H1-CU-VPT | 3.5' 320x240 intelligent Graphic TFT display, USB Interface, 9-35V Power. | $90 | |
| eGTT35A-TPC-BLM-B0-H1-CU-V5 | Capacitive panel 3.5' Touch Screen 320x240 TFT, USB Interface, 5V Power. | $90 | |
| eGTT35A-TPR-BLM-B0-H1-CU-VPT | Resistive panel 3.5' Touch Screen 320x240 TFT, USB Interface, 9-35V Power. | $93 | |
| eGTT35A-TPC-BLM-B0-H1-CU-VPT | Capacitive panel 3.5' Touch Screen 320x240 TFT, USB Interface, 9-35V Power. | $100 |
