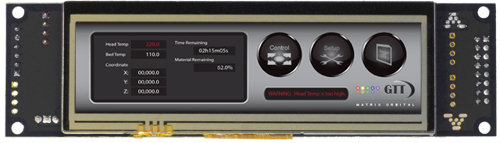

eGTT38A-TPR-BLH-B0-H1-CI-V5 Display Module

eGTT38A-TPR-BLH-B0-H1-CI

The eGTT38A is an intelligent graphic lcd display that features a full color resistive touchscreen TFT and is designed to fit 1U applications. With the available - industry standard - communication protocols (serial RS232, TTL, I2C, RS422 and USB) communicating, controlling and interacting with the display is easily achieved.

Field updatable micro SD card stores font and bitmap files to liberate space and resources for use by the microcontroller, Arduino, or other HMI controller. Suitable for a wide range of applications, and with a resolution of 480 x 116, the eGTT38A is a complete display solution that will quickly become the bright fresh face of your machine or user interface.

Pair the eGTT series with our free software - GTT Designer - to design screens and user interactions quickly and easily. The software, which is compatible with all GTT displays, is a fully graphical, object-on, drag and drop suite with a library of built-in objects. Including: graphs, charts, buttons and animations. The interface was designed so no technical expertise is required to create a fully interactive user interface in minutes.

  • 16bit Color 3.8' 1U - 480 x 116 graphic TFT display
  • Available Interfaces: Serial RS232, TTL, I2C, RS422 and USB
  • Resistive Touch panel
  • Sunlight readable TFT
  • Full color 1U TFT
  • 2 GB on-board memory for fonts, graphics and animations
  • 32MB of RAM
  • Two available voltage options: 5Vdc or 9-35Vdc
  • Programmable to display any language
  • Field upgradable firmware
  • Hardware flow control
  • Fast and easy development
  • Designed, supported and Made in CANADA.
  • Backed my Matrix Orbital`s decades of research and development.
  • GTT HMI/GUI Design Software

This is 480 x 116 intelligent Graphic LCD TFT display that features a full color resistive touchscreen in I2C protocol.

Software
GTT Developer Manual
GTT Protocol Manual
Cables
LCD Selection Guide
Keypad Selection Guide

Features:

Keypad25
GPO6
LCD TypeGraphic TFT Touch
PolarizerTransmissive
ModelA
ControllerLPC1788

Appearance:

Module Size140.0 mm(L)×38.0 mm(W)×19.55 mm(T)
Pixels480(Rows)×116(Cols)
Active Area95.04 mm(L)×22.97 mm(W)
Background ColorBlack
Text ColorFull Color

Interface:

Buffer4096 bytes Bytes
OtherPiezo Buzzer, Tactical Feedback

Electrical:

Standard Temperature0°C to 50°C
Extended Temp.(-E)-20°C to 70°C
Max Humidity0%
Supply Current280 mA
Backlight Current230 mA

Part No. Description Price
eGTT38A-TPR-BLH-B0-H1-CI-V5 Resistive panel 3.8' Touch Screen 480x116 TFT, I2C Interface, 5V Power. $122
eGTT38A-TPR-BLH-B0-H1-CI-VPT Resistive panel 3.8' Touch Screen 480x116 TFT, I2C Interface, 9-35V Power. $132
