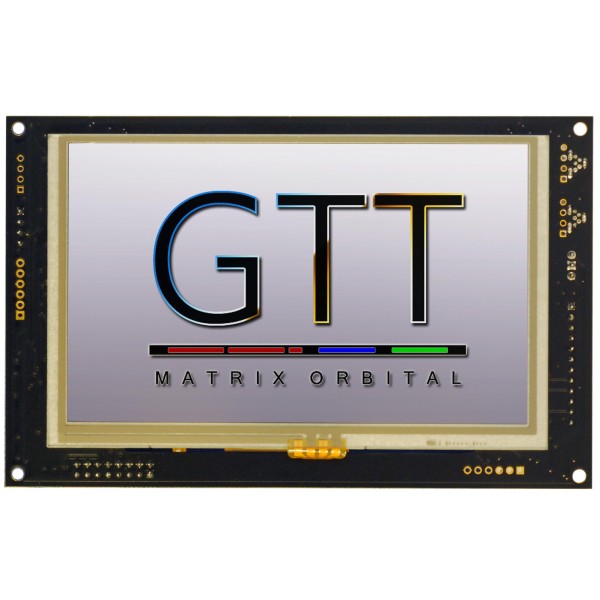

eGTT50A-TPC-BLM-H1-C4-V5 Display Module

eGTT50A-BLM-H1-C4

The eGTT50A is an intelligent TFT display that features a full color resistive, or capacitive touchscreen. With the available - industry standard - communication protocols (serial RS232, TTL, I2C, RS422 and USB) communicating, controlling and interacting with the display is easily achieved.

Included features, like the piezo speaker and vibratory motor, provide tactile and audio feedback for a comfortable, confident user interaction. Additionally, the field updatable micro SD card stores font and bitmap files to liberate space and resources for use by the microcontroller, Arduino, or other HMI controller. Suitable for a wide range of applications, and with a resolution of 800 x 480, the eGTT50A is a complete display solution that will quickly become the bright fresh face of your machine or user interface.

Pair the eGTT series with our free software - GTT Designer - to design screens and user interactions quickly and easily. The software, which is compatible with all eGTT displays, is a fully graphical, object-on, drag and drop suite with a library of built-in objects. Including: graphs, charts, buttons and animations. The interface was designed so no technical expertise is required to create a fully interactive user interface in minutes.

  • 16bit Color 5.0' - 800 x 480 WVGA TFT display
  • Available Interfaces: Serial RS232, TTL, I2C, RS422 and USB
  • Resistive or Capacitive Touch panel
  • 2 GB on-board memory for fonts, graphics and animations
  • 32MB of RAM
  • Two available voltage options: 5Vdc or 9-35Vdc
  • Programmable to display any language
  • Field upgradable firmware
  • Hardware flow control
  • Fast and easy development
  • Designed, supported and Made in CANADA.
  • Backed my Matrix Orbital`s decades of research and development.
  • GTT HMI/GUI Design Software

This is 800 x 480 intelligent Graphic LCD TFT display that features a full color resistive touchscreen in serial RS422 protocol.

Software
GTT Developer Manual
GTT Protocol Manual
Cables
LCD Selection Guide
Keypad Selection Guide

Features:

Keypad25
GPO6
LCD TypeGraphic TFT Touch
PolarizerTransmissive
ModelA
ControllerLPC1788

Appearance:

Module Size142.00 mm(L)×90.00 mm(W)×17.00 mm(T)
Pixels480(Rows)×800(Cols)
Active Area108.00 mm(L)×64.80 mm(W)
Background ColorBlack
Text ColorRGB

Interface:

Buffer4096 bytes Bytes
OtherPiezo Buzzer, Tactical Feedback

Electrical:

Standard Temperature0°C to 50°C
Extended Temp.(-E)-20°C to 70°C
Max Humidity0%
Supply Current265 mA
Backlight Current350 mA

Part No. Description Price
eGTT50A-TPN-BLM-H1-C4-V5 5.0' 800x480 intelligent Graphic TFT display, Serial RS422 Interface, 5V Power. $90
eGTT50A-TPR-BLM-H1-C4-V5 Resistive panel 5.0' Touch Screen 800x480 TFT,Serial RS422 Interface, 5V Power. $93
eGTT50A-TPN-BLM-H1-C4-VPT 5.0' 800x480 intelligent Graphic TFT display, Serial RS422 Interface, 9-35V Power. $100
eGTT50A-TPC-BLM-H1-C4-V5 Capacitive panel 5.0' Touch Screen 800x480 TFT, Serial RS422 Interface, 5V Power. $100
eGTT50A-TPR-BLM-H1-C4-VPT Resistive panel 5.0' Touch Screen 800x480 TFT, Serial RS422 Interface, 9-35V Power. $103
eGTT50A-TPC-BLM-H1-C4-VPT Capacitive panel 5.0' Touch Screen 800x480 TFT, Serial RS422 Interface, 9-35V Power. $110
