HTT101G-TPC-BLH-B0-H5-CH-V Display Module

HTT101G-TPC-BLH-B0

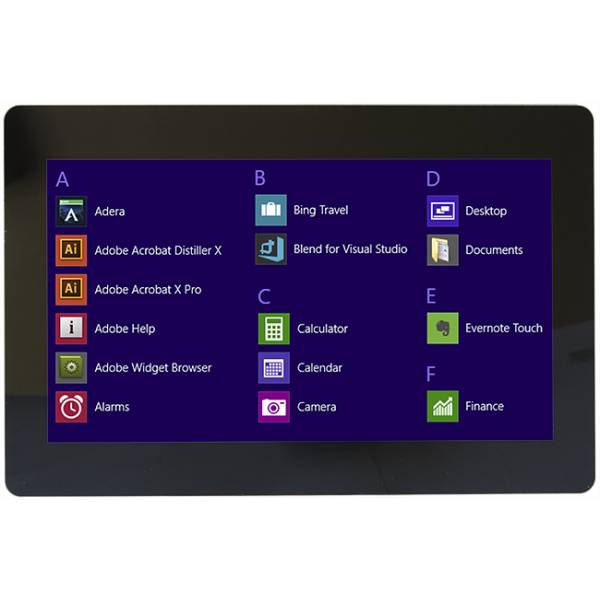

The HTT101G is a 10.1' inch Industrial Embedded plug and play HDMI HMI TFT display that features a full color 1280x800 10.1' HDMI TFT, automatic resolution detection and a 24bit DVI/HDMI interface. The oversized, mountable, capacitive, module is compatible with a wide range of systems including: Raspberry Pi, Windows, Linux, iMX and BeagleBone. From the hobbyist to the high volume industrial application, the HTT Series was designed to satisfy a wide range of customer application requirements.

  • 10.1' HDMI IPS TFT Display
  • 1280x800 IPS Display
  • Upgradable touch driver firmware
  • Sunlight readable IPS TFT, 900 cd/m2
  • USB for touchscreen
  • Automatic HDMI EDID
  • Multi-touch Capacitive touch screen
  • Multi-touch Digitizer HID
  • Horizontal or Vertical headers for easy Panel Mounting
  • 5V - 15V Industrial Power Input
  • Operating Temp: -20 to +70C
  • Low profile 3M mounting holes
  • Semi-Custom designs available

Software
HTT Utility Guide
Quick Start Guide for HTT Series
Cables
LCD Selection Guide
Keypad Selection Guide

Features:

KeypadN/A
One WireN/A
GPON/A
Advanced GPON/A
LCD TypeTFT
PolarizerTransmissive
ModelA
ControllerTFP401A+LPC11U23

Appearance:

Pixels1280(Rows)×800(Cols)
Active Area217.0 mm(L)×135.6 mm(W)
Background ColorBlack
Text ColorFull Color

Interface:

OtherHDMI

Electrical:

Standard Temperature-20°C to 70°C
Extended Temp.(-E)-30°C to 80°C
Supply Current375 mA

Part No. Description Price
HTT101G-TPC-BLH-B0-H5-CH-V Plug and play 10.1' IPS HDMI, 1280x800 TFT, Capacitive Touchscreen, 9-15Vdc, Horizontal headers $218
HTT101G-TPC-BLH-B0-H6-CH-V Plug and play 10.1' IPS HDMI, 1280x800 TFT, Capacitive Touchscreen, 9-15Vdc, Vertical headers $218
HTT101G-TPC-BLH-B0-H5-CH-V5 Plug and play 10.1' IPS HDMI, 1280x800 TFT, Capacitive Touchscreen, 5Vdc, Horizontal headers $218
HTT101G-TPC-BLH-B0-H6-CH-V5 Plug and play 10.1' IPS HDMI, 1280x800 TFT, Capacitive Touchscreen, 5Vdc, Vertical headers $218
