HTT50G-TPC-BLM-B0-H5-CH-V5 Display Module

HTT50G-TPC-BLM-B0

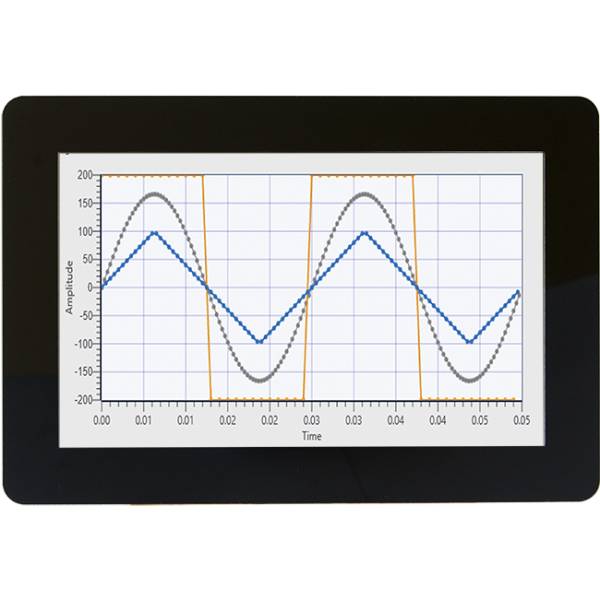

The HTT50G is a plug and play 5.0' HDMI TFT HMI display that features a full color 800 x 480 WVGA 5' HDMI TFT, automatic resolution detection and a 24bit DVI/HDMI interface. The oversized, mountable, capacitive module is compatible with a wide range of systems including: Raspberry Pi, Windows, Linux and BeagleBone. From the hobbyist to the high volume industrial application, the HTT Series was designed to satisfy a wide range of customer application requirements.

  • 800x480 WVGA 5' HDMI TFT Display
  • Upgradable touch driver firmware
  • Automatic HDMI EDID
  • USB for touchscreen
  • Multi-touch Capacitive touch screen TFT
  • Multi-touch Digitizer HID
  • Horizontal or Vertical headers for easy Panel Mounting
  • 5V or 9-35V Industrial Power Input
  • Operating Temp: -20 to +70C
  • Low profile 3M mounting holes
  • Semi-Custom designs available

Software
HTT Utility Guide
Quick Start Guide for HTT Series
Cables
LCD Selection Guide
Keypad Selection Guide

Features:

KeypadN/A
One WireN/A
GPON/A
Advanced GPON/A
LCD TypeTFT
PolarizerTransmissive
ModelA
ControllerTFP401A+LPC11U23

Appearance:

Module Size136.00mm(L)×92.80mm(W)×14.37mm(T)
Pixels800(Rows)×480(Cols)
Active Area108mm(L)×64.8mm(W)
Background ColorBlack
Text ColorFull Color

Interface:

OtherHDMI

Electrical:

Standard Temperature-20°C to 70°C
Extended Temp.(-E)-30°C to 80°C
Supply Current275 mA

Part No. Description Price
HTT50G-TPC-BLM-B0-H5-CH-V5 Oversize Mountable 5.0' 800x480 HDMI TFT, Horizontal Headers, 5.0Vdc - Capacitive Touch $110
HTT50G-TPC-BLM-B0-H6-CH-V5 Oversize Mountable 5.0' 800x480 HDMI TFT, Vertical Headers, 5.0Vdc - Capacitive Touch $110
HTT50G-TPC-BLM-B0-H5-CH-VPT Oversize Mountable 5.0' 800x480 HDMI TFT, Horizontal Headers, 5-35Vdc - Capacitive Touch $120
HTT50G-TPC-BLM-B0-H6-CH-VPT Oversize Mountable 5.0' 800x480 HDMI TFT, Vertical Headers, 5-35Vdc - Capacitive Touch $120
