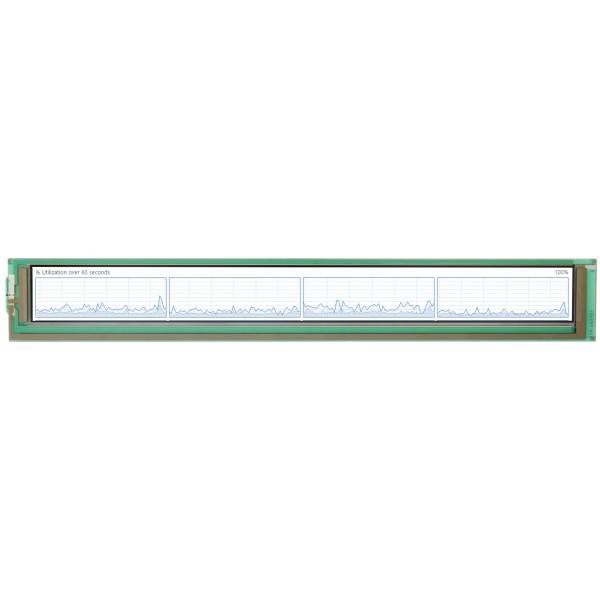

HTT104A-TPN-BLM-B0-H5-CH-V5 Display Module

HTT104A-TPN-BLM-B0

The HTT104A is a 1U Server TFT plug and play HDMI TFT display that features a full color 1024 x 100 TFT, automatic resolution detection and a 24bit DVI/HDMI interface. The resistive, capacitive, or non-touch modules are compatible with a wide range of systems including: Raspberry Pi, Windows, Linux and BeagleBone. From the hobbyist to the high volume industrial application, the HTT Series was designed to satisfy a wide range of customer application requirements.

  • Upgradable touch driver firmware
  • Horizontal or Vertical headers for easy Panel Mounting
  • 5V or 5-35V Industrial Power Input
  • Operating Temp: 0 to +50C
  • Semi-Custom designs available

Software
HTT Utility Guide
Quick Start Guide for HTT Series
Cables
LCD Selection Guide
Keypad Selection Guide

Features:

KeypadN/A
One WireN/A
GPON/A
Advanced GPON/A
LCD TypeTFT
PolarizerTransmissive
ModelA
ControllerTFP401A+LPC11U23

Appearance:

Pixels1024(Rows)×100(Cols)
Active Area264.19 mm(L)×25.8 mm(W)
Background ColorBlack
Text ColorFull Color

Interface:

OtherHDMI

Electrical:

Standard Temperature0°C to 50°C
Extended Temp.(-E)-10°C to 60°C
Supply Current375 mA

Part No. Description Price
HTT104A-TPN-BLM-B0-H5-CH-V5 10.4' 1024x100 1U HDMI TFT, Horizontal Headers, 5.0Vdc - No Touch $155
HTT104A-TPN-BLM-B0-H6-CH-V5 10.4' 1024x100 1U HDMI TFT, Vertical Headers, 5.0Vdc - No Touch $155
HTT104A-TPN-BLM-B0-H5-CH-VPT 10.4' 1024x100 1U HDMI TFT, Horizontal Headers, 5-35Vdc - No Touch $165
HTT104A-TPN-BLM-B0-H6-CH-VPT 10.4' 1024x100 1U HDMI TFT, Vertical Headers, 5-35Vdc - No Touch $165
