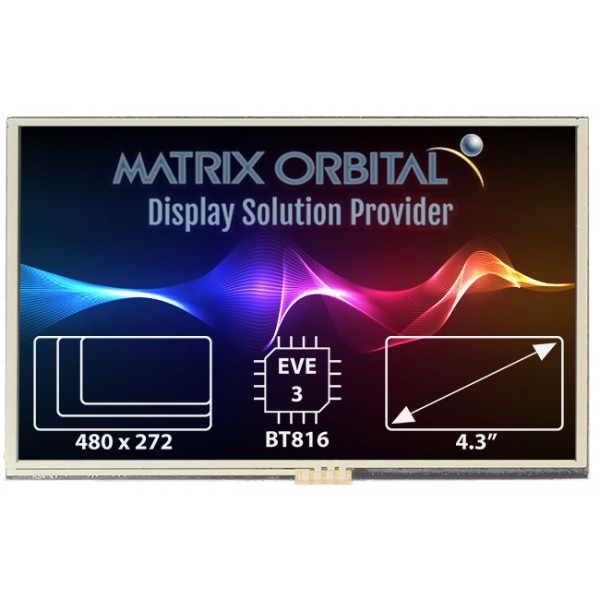

EVE3-43A-BLM-TPR-F0 Display Module

EVE3-43A-BLM

The Matrix Orbital EVE3 SPI TFT utilizes the FTDI/Bridgetek BT816 EVE (Embedded Video Engine) to create fast and economical HMI systems. With built in graphics operations, sound synthesizer, digital filter and support for multiple widgets you can create your own stunning screens and interfaces with the EVE Screen Designer software.

  • 4.3' 480x272 HVGA SPI TFT
  • Resistive TFT, or Non-Touch TFT
  • 32Mb or optional 128Mb SPI NOR Flash
  • Easy mounting and stylish design
  • BT816 24bit TFT GPU
  • 1 MB graphics RAM
  • 3.3V
  • SPI TFT interface
  • Option USB interface
  • Integrated backlight PWM LED Driver
  • Standard 20 Pin Connector
  • Mono 8-bit linear audio wave playback
  • SPI and QSPI communication protocol
  • Advanced Embedded Video Engine (EVE) with high resolution graphics and video playback
  • EVE Screen Designer (ESD) GUI drag and drop design suite
  • Supports multiple widgets
  • Supports landscape or portrait orientations
  • Supports playback of motion-JPEG encoded AVI videos
  • Extended Operating temperature range: -20oC to 70oC
  • Fast and easy development
  • Designed, supported and Made in CANADA
  • Long life cycle
  • Customer silk screening available
  • Semi-custom designs available
  • Long life production
  • Backed by Matrix Orbital`s decades of research and development

Software
EVE 3 Module Manual
Cables
LCD Selection Guide
Keypad Selection Guide

Features:

KeypadN/A
One WireN/A
GPO4
Advanced GPON/A
LCD TypeTFT
PolarizerTransmissive
ModelA
ControllerBT81x

Appearance:

Pixels480(Rows)×272(Cols)
Active Area95.04 mm(L)×53.86 mm(W)
Background ColorBlack
Text ColorFull Color

Interface:

Buffer1MB Bytes
OtherSPI/QSPI

Electrical:

Standard Temperature-20°C to 70°C
Extended Temp.(-E)-30°C to 80°C
Supply Current50mA
Backlight Current70mA

Part No. Description Price
EVE3-43A-BLM-TPN-F0 EVE3 4.3' SPI TFT 480x272 HMI Non-Touch Screen SPI, none NOR Flash $55
EVE3-43A-BLM-TPN-F32 EVE3 4.3' SPI TFT 480x272 HMI Non-Touch Screen SPI, 32M NOR Flash $55
EVE3-43A-BLM-TPN-F128 EVE3 4.3' SPI TFT 480x272 HMI Non-Touch Screen SPI, 128M NOR Flash $58
EVE3-43A-BLM-TPR-F0 EVE3 4.3' SPI TFT 480x272 HMI Resistive Touch Screen SPI, none NOR Flash $60
EVE3-43A-BLM-TPR-F32 EVE3 4.3' SPI TFT 480x272 HMI Resistive Touch Screen SPI, 32M NOR Flash $60
EVE3-43A-BLM-TPR-F128 EVE3 4.3' SPI TFT 480x272 HMI Resistive Touch Screen SPI, 128M NOR Flash $63
