EVE2-SHIELD Display Module

EVE2-SHIELD

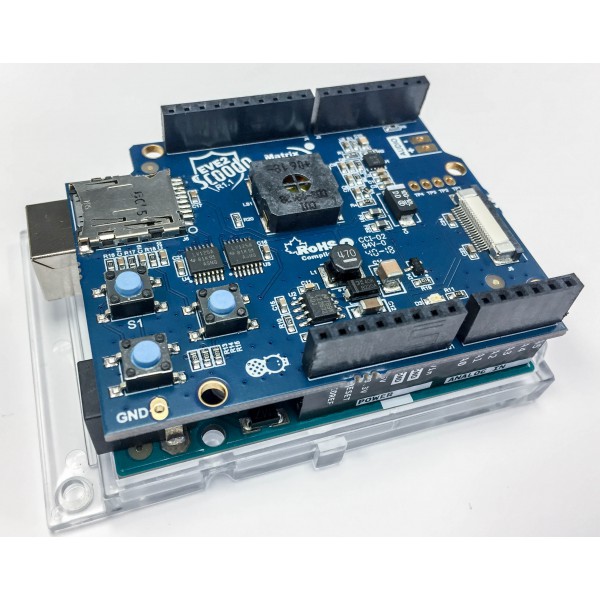

The Scoodo is an interface module for Matrix Orbital EVE2 SPI TFT displays to Arduino Uno and Parallax Propeller Shield products.

Compatible with all Matrix Orbital EVE2 and EVE3 displays.

Features:

  • Mono Speaker (optional)
  • 5V tolerant
  • Micro SD Card slot
  • 3 buttons
  • Standard 20 Pin FFC for any Matrix Orbital EVE2 display
  • Includes 1x Scoodo EVE2 Shield and 20pin Flat Flexible Cable (FFC-20P)

Software
EVE 3 Module Manual
EVE 2 Module Manual
Scoodo EVE Shield Manual
Cables
LCD Selection Guide
Keypad Selection Guide

Part No. Description Price
EVE2-SHIELD Scoodo EVE TFT SHIELD for Arduino or Propeller $20
EVE2-SHIELD-SPK Scoodo EVE TFT SHIELD for Arduino or Propeller, includes speaker $25
