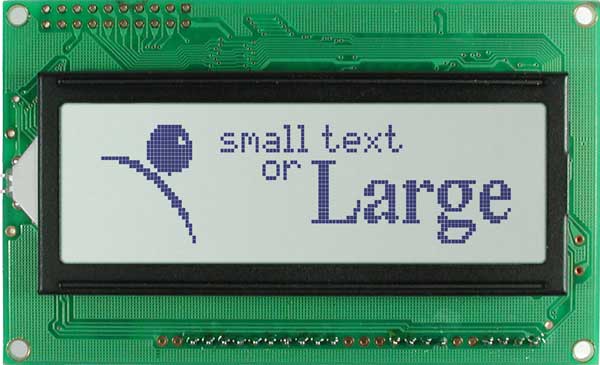

GLK12232-25-WBL
The WBL is every bit as versatile as the SM with an attractive display on a single board. This unit is ideal for those wanting the use of a 20 by 4 character display and to have graphics displayed at the same time. As with our LK units, the GLK12232-25-WBL also gives you the ability to easily use with a 25 key keypad. This product is an idea fit for industrial fax and printer machines. Please note that this product can not be used with the Matrix Orbital Communication & Power Cable.
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide
Features:
| Keypad | 25 |
| One Wire | N/A |
| GPO | 2 |
| Advanced GPO | N/A |
Appearance:
| Module Size | 98.00 mm(L)×60.00 mm(W)×13.50 mm(T) |
| Pixels | 32(Rows)×122(Cols) |
| Active Area | 76.00 mm (L)×25.20 mm(W) |
| Background Color | White |
| Text Color | Blue |
Interface:
| RS232 | 9600 to 115200 |
| RS232 TTL | 9600 to 115200 |
| Buffer | 92 Bytes |
| Other | I2C |
Electrical:
| Standard Temperature | 0°C to 50°C |
| Extended Temp.(-E) | -20°C to 70°C |
| Max Humidity | 90% |
| Supply Current | 18 mA |
| Backlight Current | 110 mA |
| Inrush Current | N/A |
| Part No. | Description | Price | |
|---|---|---|---|
| GLK12232-25-WBL | Base Product | $79 | |
| GLK12232-25-WBL-E | Extended Temperature option. | $89 |
