DB15HD Breakout Board - DB15HD Female Breakout Board, R/A Connector, DIN Rail Mount
Part No. Description Price Stock
BRK15HDF-R-DIN DB15HD Female Breakout Board, R/A Connector, DIN Rail Mount $18
BRK15HDF-R-FT DB15HD Female Breakout Board, R/A Connector, Feet $16 1
BRK15HDMV2-R-DIN DB15HD Male Breakout Board, R/A Connector, DIN Rail Mount $18
BRK15HDMV2-R-FT DB15HD Male Breakout Board, R/A Connector, Feet $16
∗ Standard lead time is 1 week

General Description

These breakout boards bring all 15 pins of a DB15HD (high density, 3 row) connector out to screw terminal blocks for easy connection and prototyping work. They are available with both male and female connectors. The BRK15HDM has a male connector and the BRK15HDF has a female connector. Each pin is also brought to solder pads (5 per pin) at 0.1' spacing, allowing easy addition of standard pin headers.

These break out boards are perfect for experimentation and prototype work, as well as for use in the educational laboratory. They are well-suited for interfacing with data acquisition equipment or any other devices that use a DB-15HD connector. A breakout board is sometimes referred to as a 'transition module', 'terminal board', or 'interface module'.

For mounting on a panel, we suggest the rubber feet version (-FT), 1/4' nylon standoffs under the mounting holes, and #6 screws.

Technically, the correct term for a DB15HD connector is DE15, but that term is not commonly used.


Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.

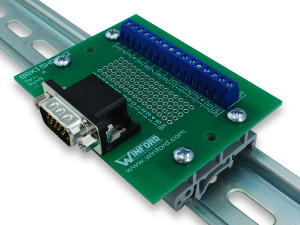

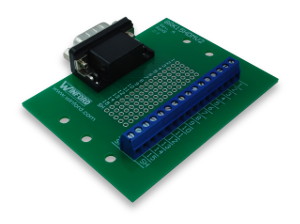

DIN Rail Mount Rubber Feet
DIN Rail Mount (-DIN) Rubber Feet (-FT)

Features


  • DB15HD (high density, three row) connector
  • Screw terminal for each data line
  • Screw terminals accomodate wire sizes from 16AWG to 26AWG
  • Solder connection holes, five (5) per pin
  • Supports addition of .1' pin headers
  • Approximate dimensions: 2.38' x 3.1'
  • Rubber feet or DIN rail mount
