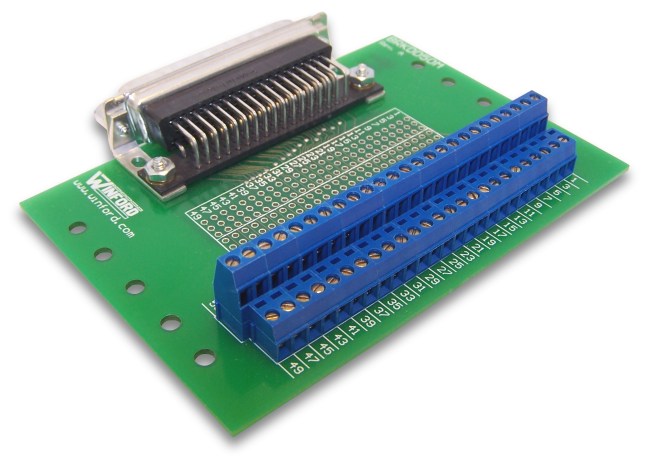

 DB50 Breakout Board - DB50 Male Breakout Board, R/A Connector, Feet
Part No. Description Price Stock
BRKDD50F-R-DIN DB50 Female Breakout Board, R/A Connector, DIN Rail Mount $82 1
BRKDD50F-R-FT DB50 Female Breakout Board, R/A Connector, Feet $80 ∗
BRKDD50FV2-R-DIN DB50 Female Breakout Board, R/A Connector, DIN Rail Mount $82 ∗
BRKDD50FV2-R-FT DB50 Female Breakout Board, R/A Connector, Feet $80 1
BRKDD50M-R-DIN DB50 Male Breakout Board, R/A Connector, DIN Rail Mount $82 ∗
BRKDD50M-R-FT DB50 Male Breakout Board, R/A Connector, Feet $80 ∗
EXT50-6 DB50 Extension Cable, Male-Female, 6Ft $37 2
∗ Standard lead time is 1 week

General Description

These breakout boards bring all 50 pins of a DB50 (3 row) connector out to double deck screw terminal blocks for easy connection and prototyping work. They are available with both male and female connectors. The BRKDD50M has a male connector and the BRKDD50F has a female connector. Each pin is also brought to solder pads (3 per pin) at 0.1' spacing, allowing the addition of small components or 0.1' headers.

These break out boards are perfect for experimentation and prototype work, as well as for use in the educational laboratory. They are well-suited for interfacing with data acquisition equipment or any other devices that use a DB-50 connector. A breakout board is sometimes referred to as a 'transition module', 'terminal board', 'breakout box', or 'interface module'.

For mounting on a panel, we suggest the rubber feet version (-FT), 1/4' nylon standoffs under the mounting holes, and #6 screws.

DIN Rail Mount Version

These products are also available with DIN rail mounting clips for quick and convenient mounting where DIN rail is used. Product numbers ending with -DIN come with DIN clips already installed and ready to mount. The clips allow mounting on standard 35mm rail as well as 32mm rail.

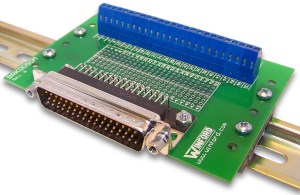

BRKDD50M-R-DIN
(BRKDD50M-R-DIN pictured - rail not included)

Features

  • DB50 (three row) connector
  • Screw terminal for each data line
  • Double deck screw terminals provide compact wiring
  • Screw terminals accomodate wire sizes from 16AWG to 26AWG
  • Approximate dimensions: 3.15' x 4.6'
  • Rubber feet or DIN rail mount
  • Warranty Period: 3 years
