BSCB-2

BSCB-2 is a low-cost, highly expandable carrier board for BASIC Stamp Microcontroller Modules (BS2) and other Third-Party Stamp compatible modules
Ideal for Internet of Things (IoT) applications.

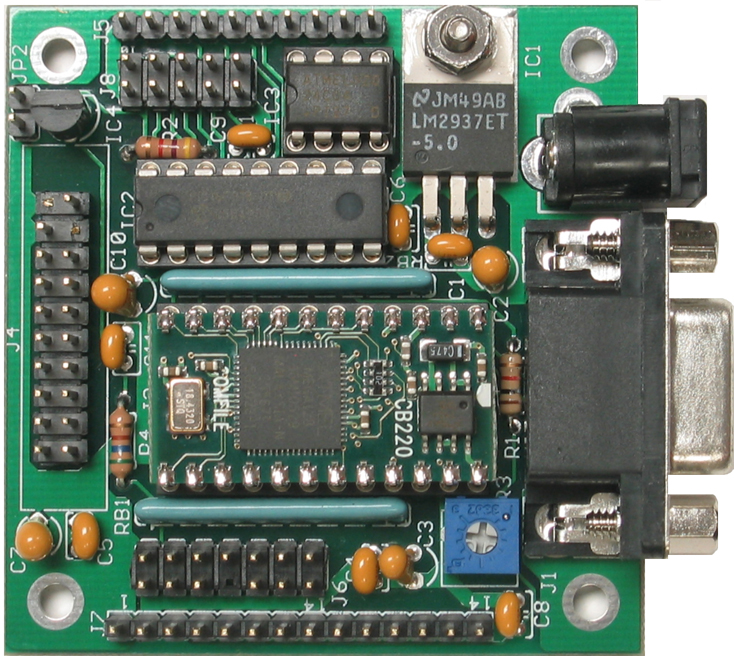

 BSCB-2 - BASIC Stamp Carrier Board with Analog and Keypad Inputs
Part No. Description Price Stock
BSCB-2 BASIC Stamp Carrier Board with Analog and Keypad Inputs $39 36
BSCB-2(No Adapter) BASIC Stamp Carrier Board with Analog and Keypad Inputs $33 75
PWR-6VDC-1A-P 6VDC Adapter, 1A $12 ∗
∗ Standard lead time is 1 week

Features

  • 24-pin DIP socket for a BASIC Stamp Module (BASIC Stamp Module itself is not included)
  • RS232 Serial Port connector for applications or for In-circuit Programming of the BASIC Stamp through the serial port. ( Serial cable included )
  • Single row and dual row 14-pin LCD connectors ( with contrast adjustment for LCD )
  • 20-pin Expansion connector for plugging peripheral boards
  • 6-12 VDC operation ( Adapter included )
  • On-board 5 Volt regulator
  • Secondary Microcontroller (16F818) that adds I/O ports, analog inputs and EEPROM
  • 10-pin matrix keypad connector ( also usable as generic I/O ) 10-pin connector also usable for analog inputs with 5V power and 4.096V reference
  • 128 byte EEPROM accessable from BASIC Stamp via the I2C bus
  • 4-channel, 10-bit ADC accessable from BASIC Stamp via the I2C bus
  • 10-pin connector for analog inputs with 5V supply and 4.096V Reference Voltage outputs
  • Socket for additional EEPROM ( accepts up to 128 Kbytes of EEPROM )
  • BSCB board allows interfacing BASIC Stamp to a wide variety of peripheral boards
  • Warranty Period: 3 years
