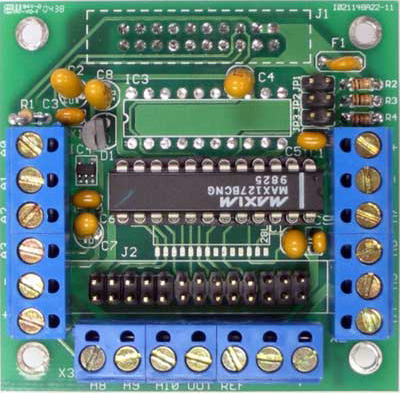

BRD-MMP-DAQ-128

8-channel, 12-bit analog inputs and 1 channel, 10-bit analog output board.
Ideal for Internet of Things (IoT) applications.

 BRD-MMP-DAQ-128 - 8-channel, 12-bit, +/-4V Analog Inputs and 1 channel, 10-bit Analog Output peripheral board
Part No. Description Price Stock
BRD-MMP-DAQ-128 8-channel, 12-bit, +/-4V Analog Inputs and 1 channel, 10-bit Analog Output peripheral board $79 ∗
∗ Standard lead time is 1 week

Features

  • 12-bit ADC, 8 channels, 4.096V reference (VREF)
  • Software configurable 0 to +VREF, 0 to +VREF/2, ±VREF, ±VREF/2 ranges
  • I2C Interface
  • Fault on one channel does not effect other channels
  • 10 microsecond conversion time
  • Analog input/output terminal blocks
  • 10-bit DAC, 1 channel
  • Resettable fuse
  • Up to 8 boards can be cascaded for up to 64 12-bit analog inputs and 8 analog outputs
  • Warranty Period: 3 years
