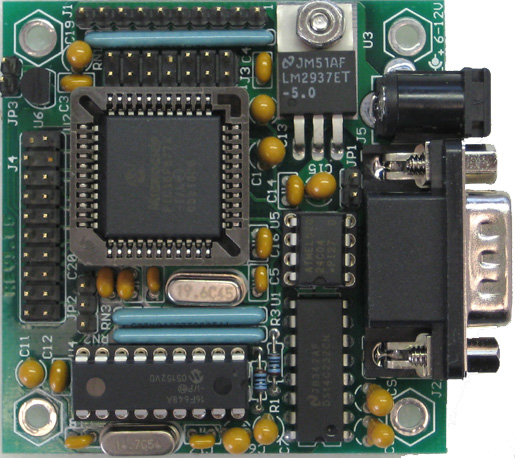

MINI-MAX/P18

Single board computer (SBC) with PIC18F458 Flash Microcontroller. MINI-MAX/P18 is a general purpose, low-cost, highly reliable, and highly expandable micro-controller system
Ideal for Internet of Things (IoT) applications.

 MINI-MAX/P18 - Microcontroller board with Microchip PIC18F458, 32 I/O, RS232. Analog inputs
BiPOM Electronics specializes in designing with Microchip products.
Part No. Description Price Stock
MINI-MAX/P18 Microcontroller board with Microchip PIC18F458, 32 I/O, RS232. Analog inputs $59 5
MINI-MAX/P18(No Adapter) Microcontroller board with Microchip PIC18F458, 32 I/O, RS232. Analog inputs $53 50
PWR-6VDC-1A-P 6VDC Adapter, 1A $12 ∗
∗ Standard lead time is 1 week

Features

  • 32K (16KX16) of In-System Re-programmable Downloadable Flash Memory
  • 1.5K RAM, 256-byte Data EEPROM, 512-byte socketed EEPROM (optional 128-Kilobyte EEPROM)
  • 33 general purpose I/O pins, 15 Interrupt Sources
  • RS232 Serial Port, In-circuit Programming of the micro-controller through the serial port
  • Two 8-bit Timers / counters with prescalers, one 16-bit timer / counter
  • Two 16-bit compare / capture PWM modules
  • 10-bit 8-channel ADC, two analog comparators
  • Precision reference voltage source for ADC
  • Programmable Watchdog Timer, Brown-out detector
  • Programmable UART, SPI, Master I2C and CANBus Serial Channel
  • Keypad connector
  • LCD connector (with programmable contrast adjustment for LCD)
  • Expansion bus interface to low-cost peripheral boards
  • (Optional) In-System Debugging support for Microchip ICD2, ICD3 and PICKit(TM) 3 using PIGGY
  • 6 Volts DC Adapter, serial cable, serial downloader, online technical manual and schematics
  • Warranty Period: 3 years

The adapter is 110VAC type. Please let us know if you would like to receive a 220VAC adapter for your country or if you would like to have the board shipped without an adapter.
