MINI-MAX/51 Set I

Our MINI-MAX Set contains everything you need to get started with micro-controllers. The core of the sets is the MINI-MAX/51-C2 microcontroller board, a powerful, yet easy-to-use microcomputer system based on the latest generation of flash-based 8051 microcontrollers from ATMEL.
Ideal for Internet of Things (IoT) applications.

 MINI-MAX/51 Set I - MINI-MAX/51-C2,TB-1,Micro-IDE,BASCOM51 Demo,Cables,Power Supply
Part No. Description Price Stock
MINI-MAX/51 Set I MINI-MAX/51-C2,TB-1,Micro-IDE,BASCOM51 Demo,Cables,Power Supply $89 ∗
PWR-6VDC-1A-P 6VDC Adapter, 1A $12 ∗
∗ Standard lead time is 1 week

MINI-MAX/51-C2 is a fully assembled product that is ready to use out of the box. MINI-MAX/51-C2 has 64K of flash memory which holds thousands of lines of BASIC or C programs. Program execution speeds reach over 2 million instructions per second. Programs are downloaded into the MINI-MAX/51-C2 with a personal computer through an available serial (COM) port. Downloads typically take only few seconds.

Over 70 project examples demonstrate interfacing to LCD displays, keypads, EEPROM's, analog to digital conversion, buzzer, ports, LEDs and many other microcontroller peripherals.

Features

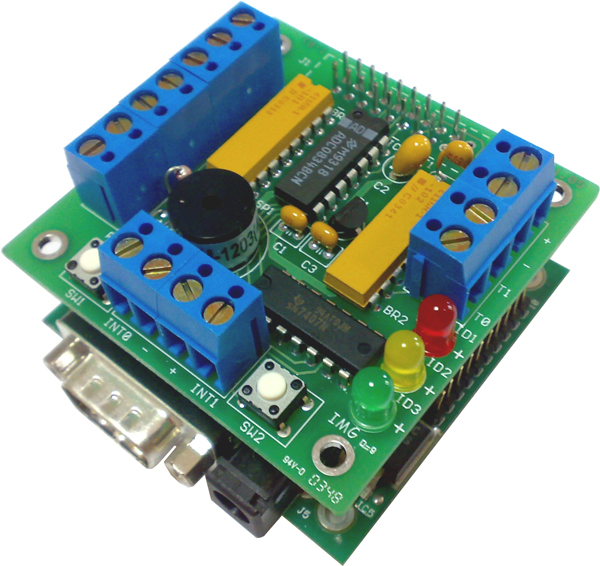

  • MINI-MAX/51-C2 Micro-controller Board
  • TB-1 Training Board with 4-channel, 8-bit Analog/Digital Converter buzzer, traffic lights, counter and interrupt inputs
  • BASCOM51 Basic Compiler Demo version (size restricted)
  • Micro-IDE Integrated Development Environment
  • Serial cable, Power Supply, Online Technical Manual and Schematics
  • Compatible with our Micro C Compiler, SDCC Compiler or any other third-party programming language for BASIC, C or Assembly programming
  • Warranty Period: 3 years
