MINI-MAX/ARM Set I

MINI-MAX Set contains everything you need to get started with micro-controllers. The core of the sets is the MINI-MAX/ARM-C microcontroller board, the ultimate 32-bit ARM7 microcontroller board at a truly low cost. It is based on the LPC2138 ARM7 main microcontroller and AVR secondary microcontroller.
Ideal for Internet of Things (IoT) applications.

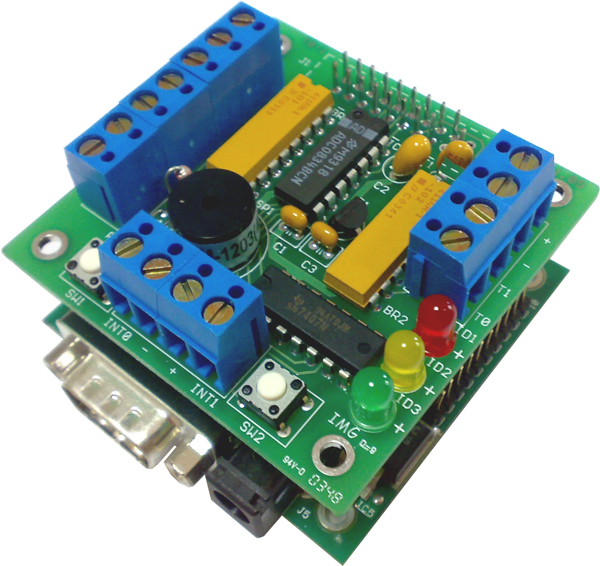

 MINI-MAX/ARM Set I - MINI-MAX/ARM-C,TB-1,Cables,Power Supply
Part No. Description Price Stock
MINI-MAX/ARM Set I MINI-MAX/ARM-C,TB-1,Cables,Power Supply $99 ∗
PWR-6VDC-1A-P 6VDC Adapter, 1A $12 ∗
∗ Standard lead time is 1 week

MINI-MAX/ARM-C microcontroller board is a fully assembled product that is ready to use out of the box. MINI-MAX/ARM-C microcontroller board has 32K static RAM and 512KB of flash memory which holds thousands of lines of C programs. Programs are downloaded into the MINI-MAX/ARM-C with a personal computer through an available serial (COM) port. Downloads typically take only few seconds.

Project examples demonstrate interfacing to TB-1 Peripheral Board, analog to digital conversion, ports and many other microcontroller peripherals.

Features

  • MINI-MAX/ARM-C microcontroller board
  • TB-1 Training Board with 4-channel, 8-bit Analog/Digital Converter buzzer, traffic lights, counter and interrupt inputs
  • Micro-IDE Integrated Development Environment
  • Serial cable, Power Supply, Online Technical Manual and Schematics
  • Compatible with our GNUARM C Compiler or any other third-party programming language for C or Assembly programming
  • Warranty Period: 3 years
